Engine Control System Wiring Diagram

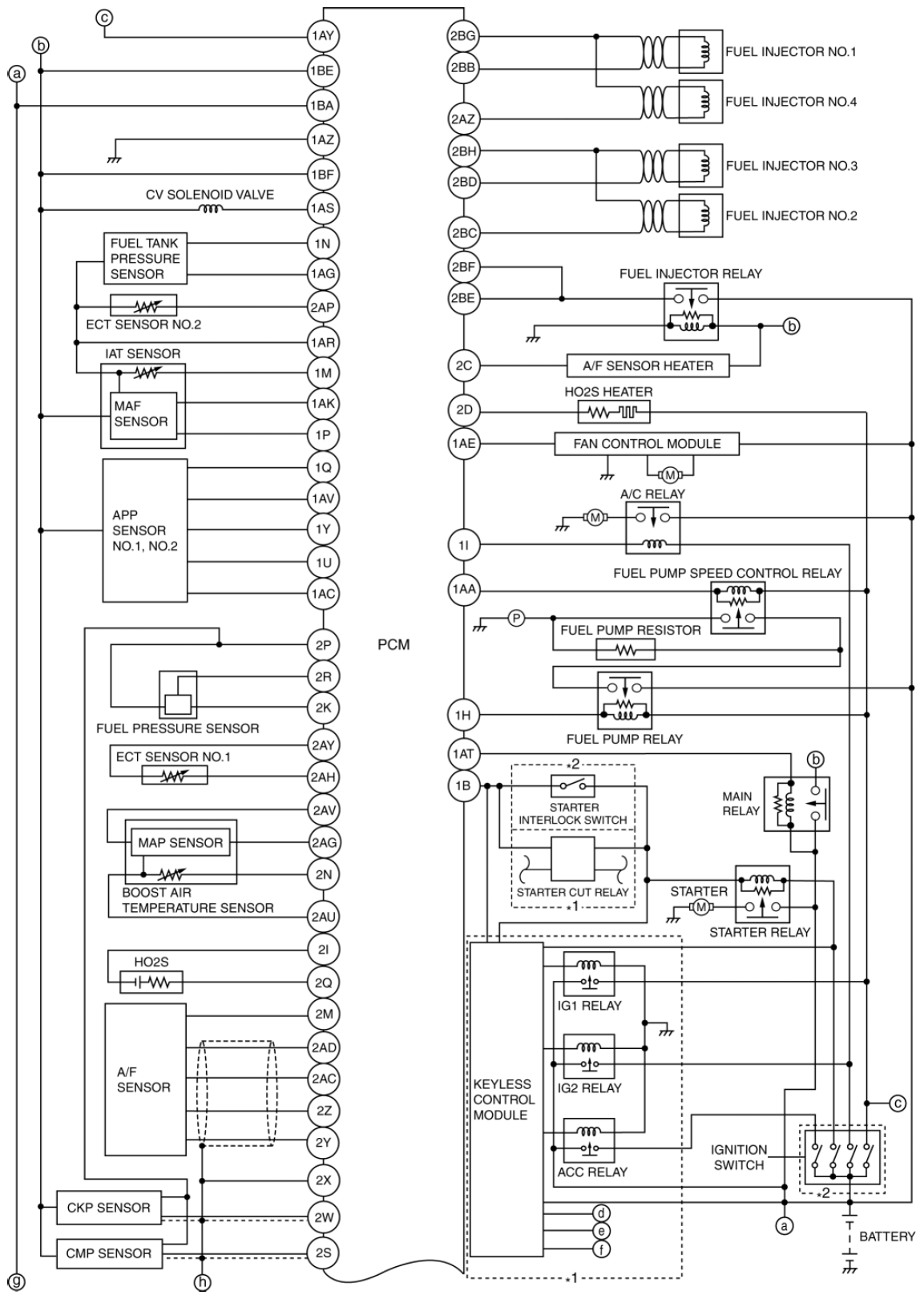

Fig 1: Engine Control System Wiring Diagram [MZR 2.3 DISI Turbo] (1 Of 2)

G08155425

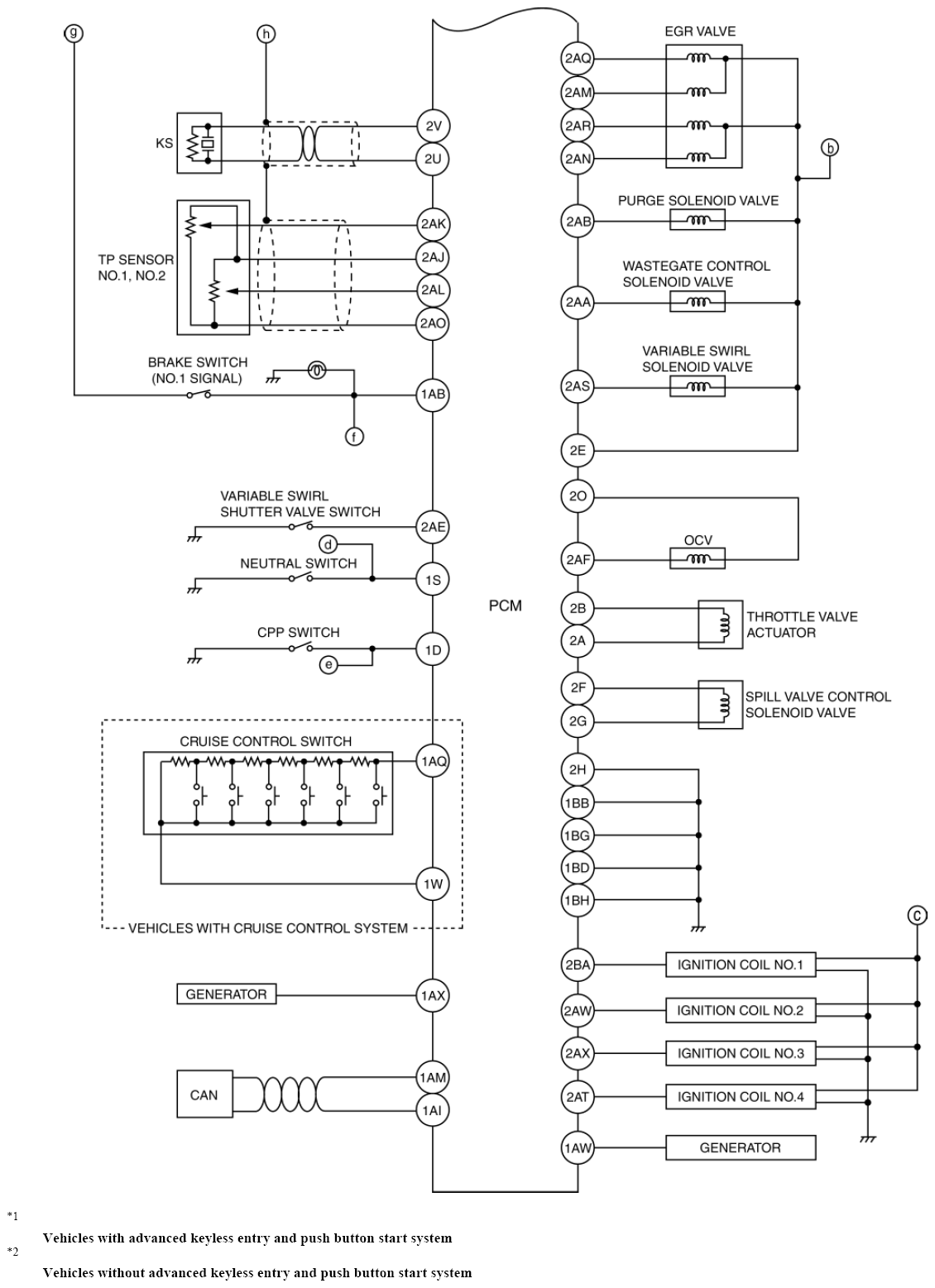

Fig 2: Engine Control System Wiring Diagram [MZR 2.3 DISI Turbo] (2 Of 2)

G08155426
