Dynamic Stability Control System Wiring Diagram [Dynamic Stability Control (DSC)]
Dynamic Stability Control System Wiring Diagram [Dynamic Stability Control (DSC)]

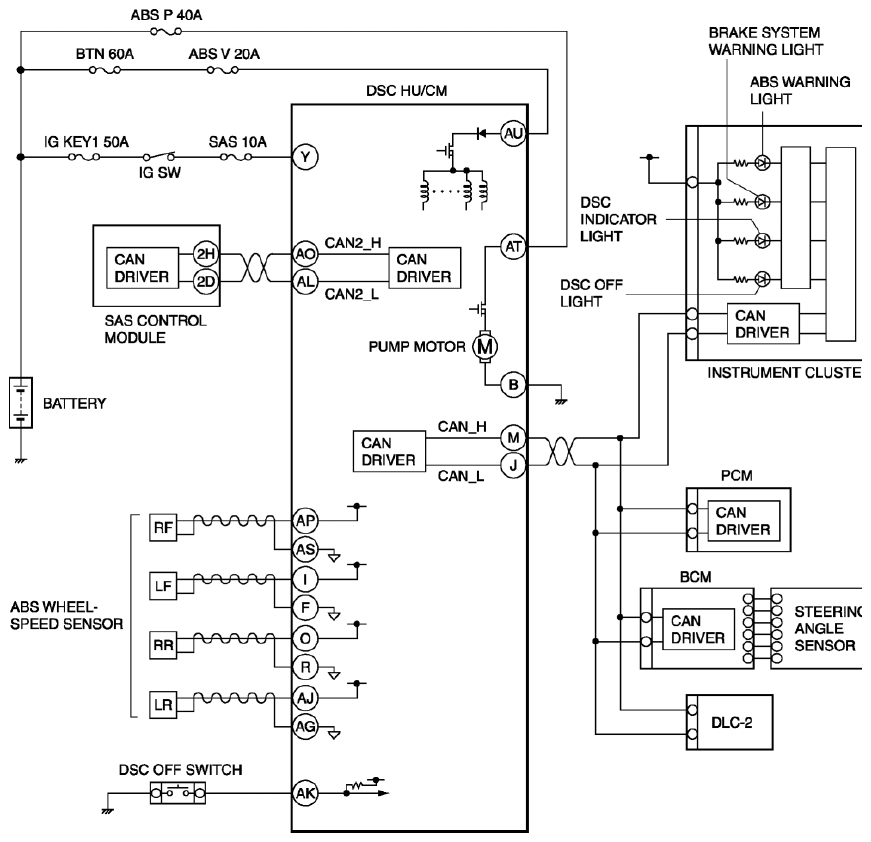

Fig 1: ABS/Dynamic Stability Control System Wiring Diagram
