Brake Pipe Installation Note

  1. Align the marks made before removal and install the brake pipe into the DSC HU/CM referring to the figure.

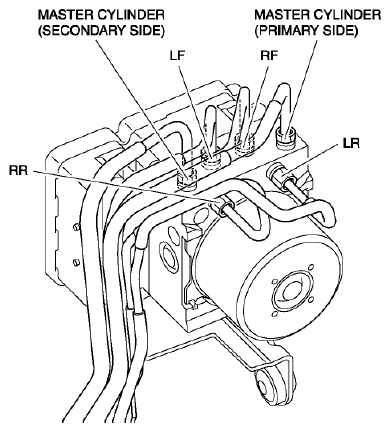

    Fig 1: Installing Brake Pipe Into DSC HU/CM
    G08150686
