Rear Fan Switch Connector End View
Rear Fan Switch Connector End View

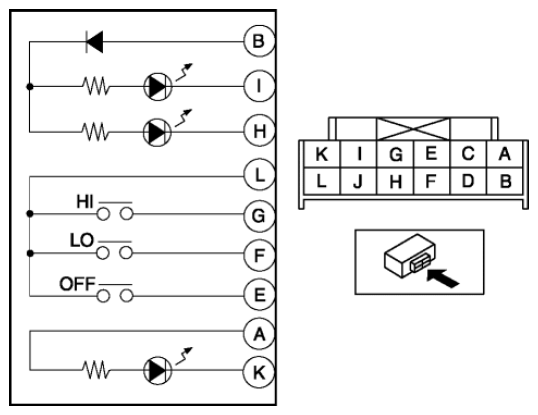

Fig 1: Rear Fan Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
