Steering Gear And Linkage Disassembly: Notes

CAUTION:
  • To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.
  1. Disassemble in the order indicated in the table.

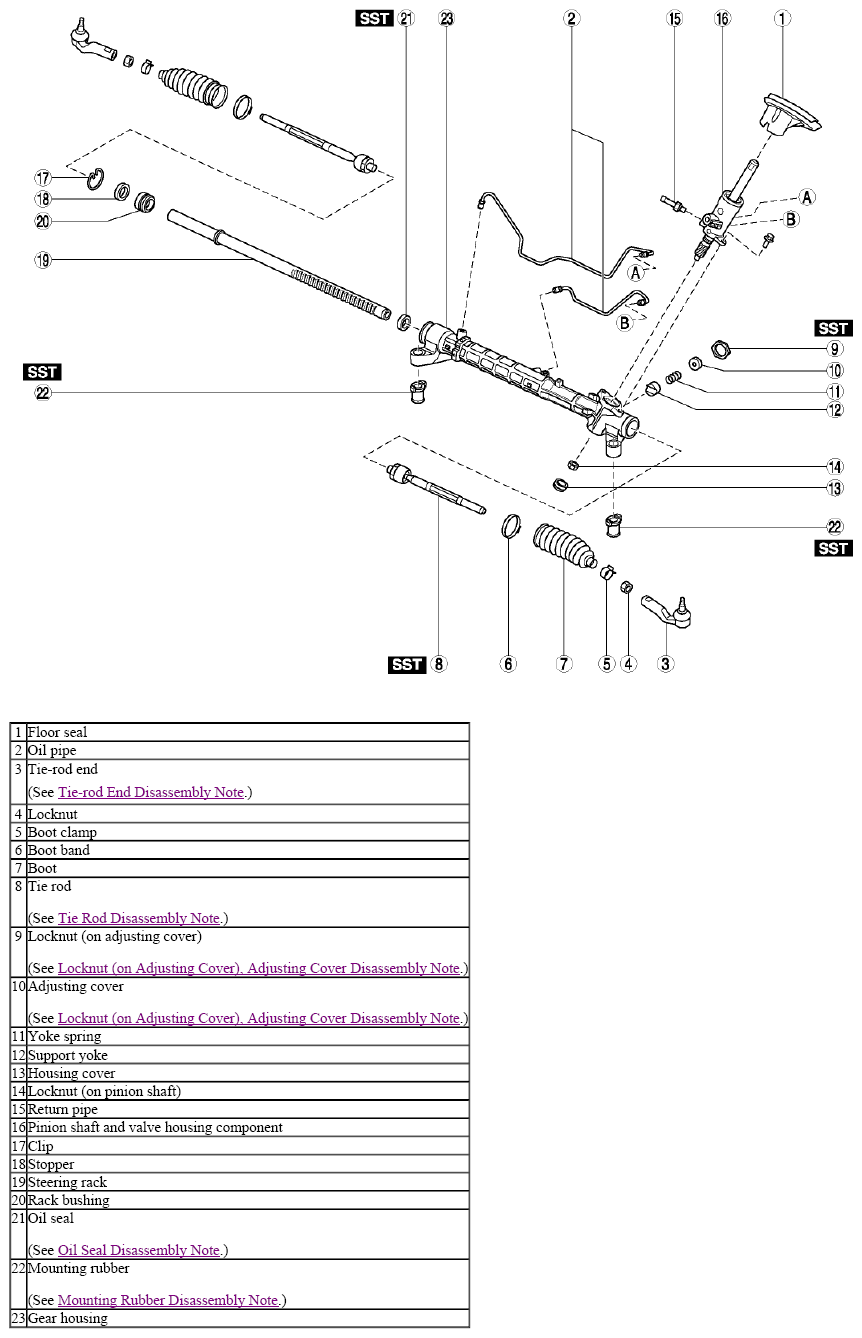

Fig 1: Steering Gear And Linkage Components
G08152202
