Power Window System (Auto-Open/Close Function For Driver-Side Window)

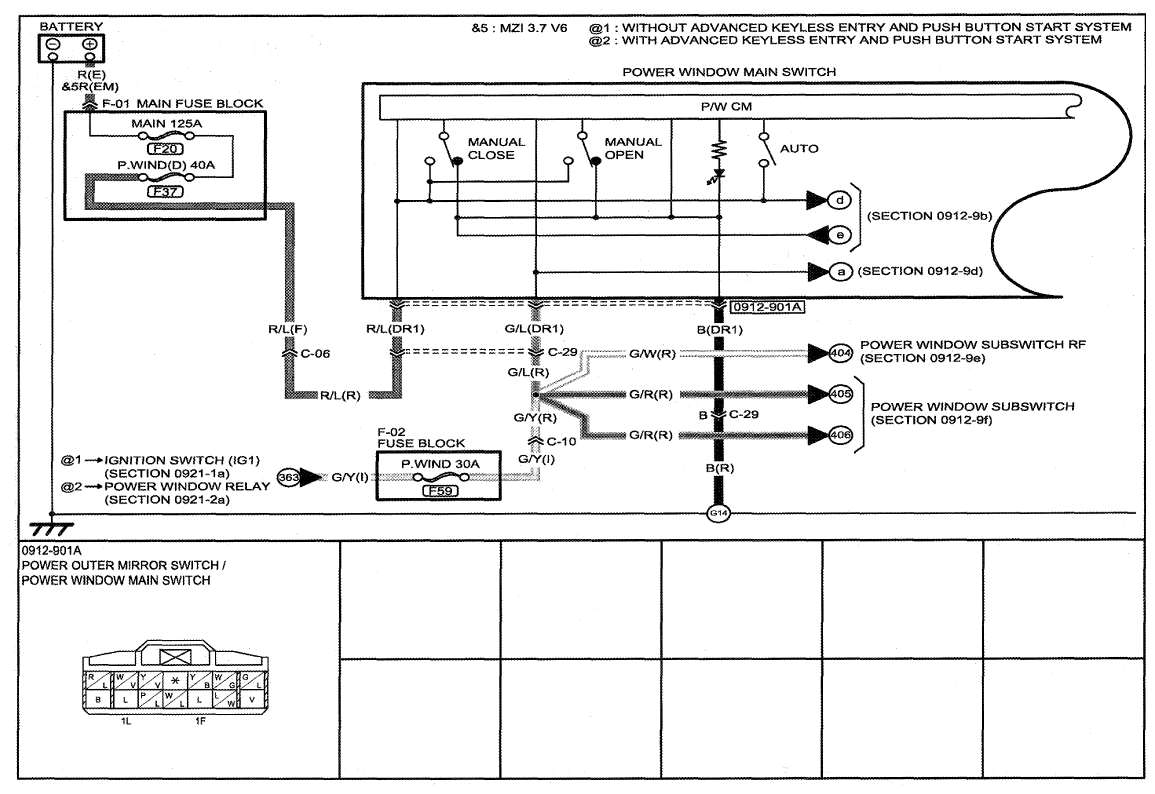

Fig 1: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9a); 1 Of 2

Fig 2: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9a); 2 Of 2

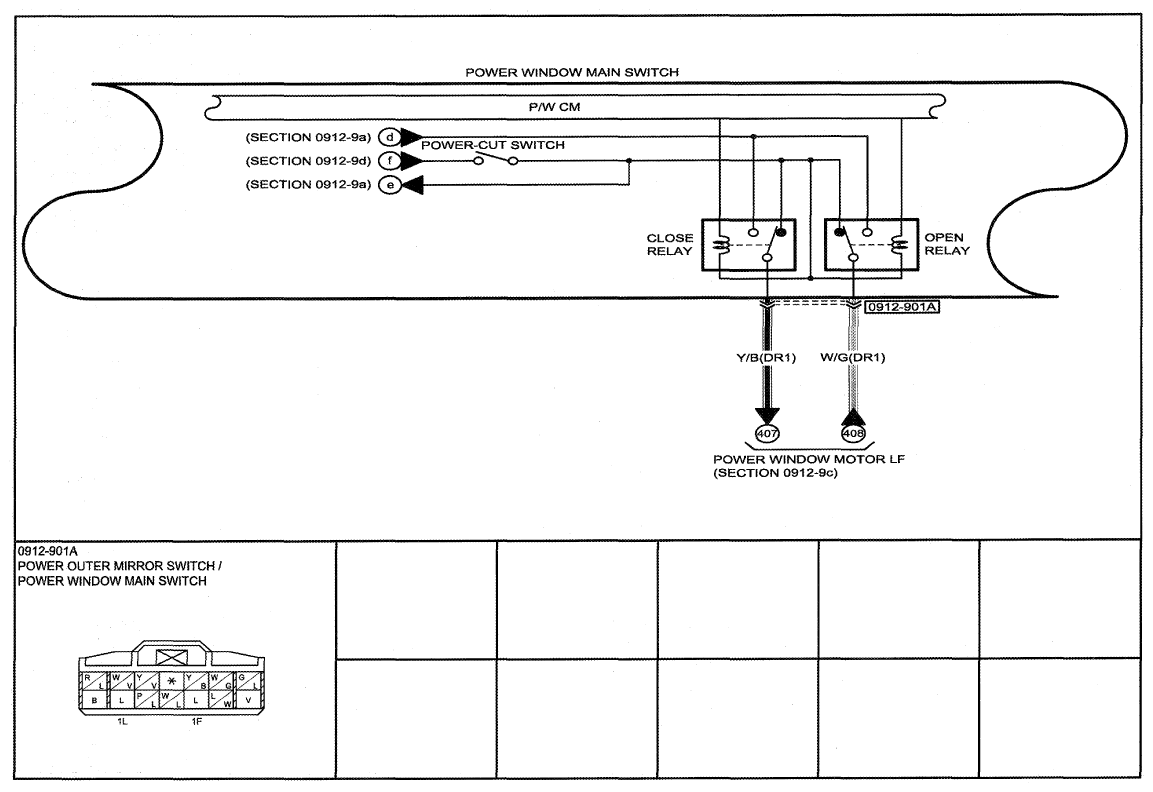

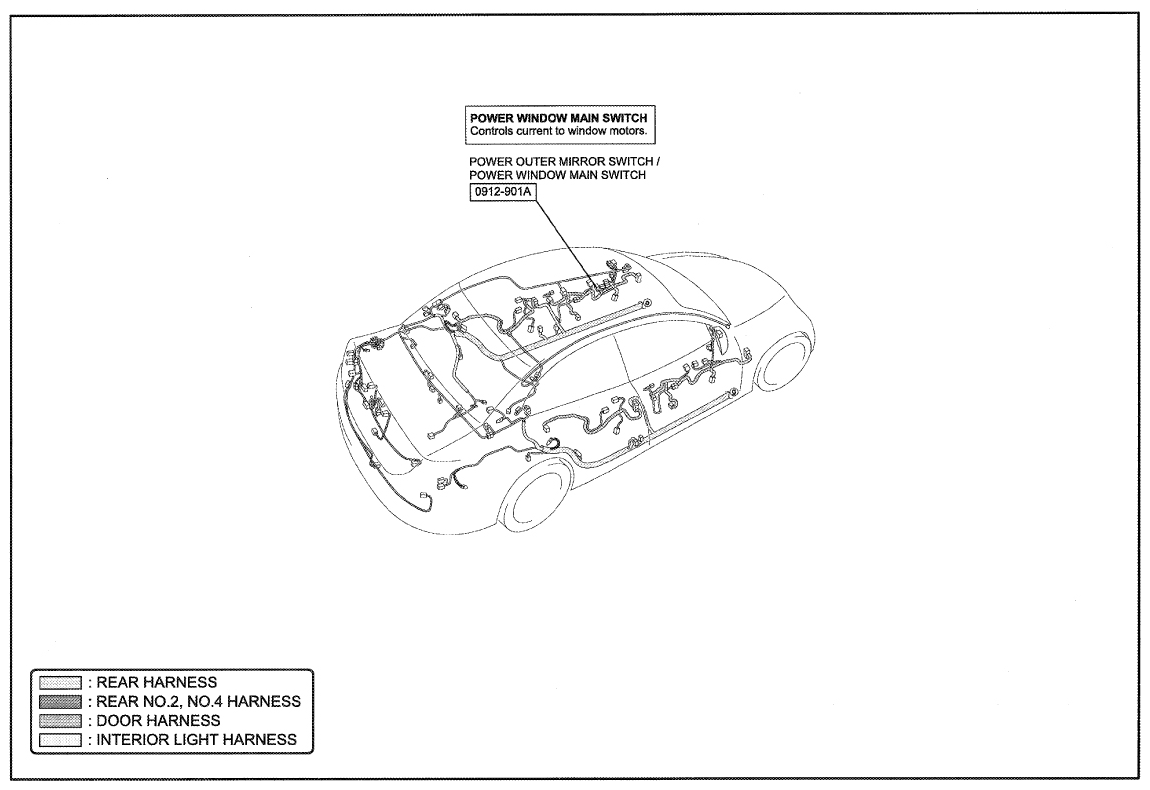

Fig 3: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9b); 1 Of 2

Fig 4: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9b); 2 Of 2

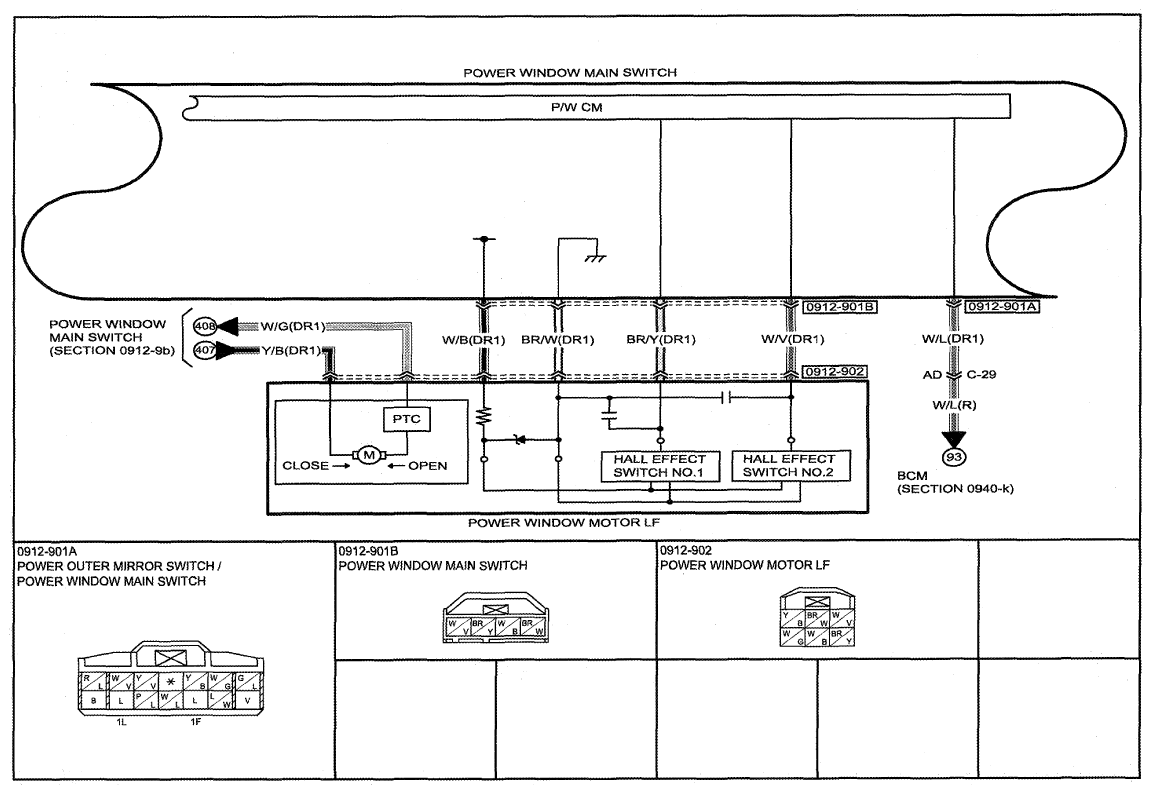

Fig 5: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9c); 1 Of 2

Fig 6: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9c); 2 Of 2

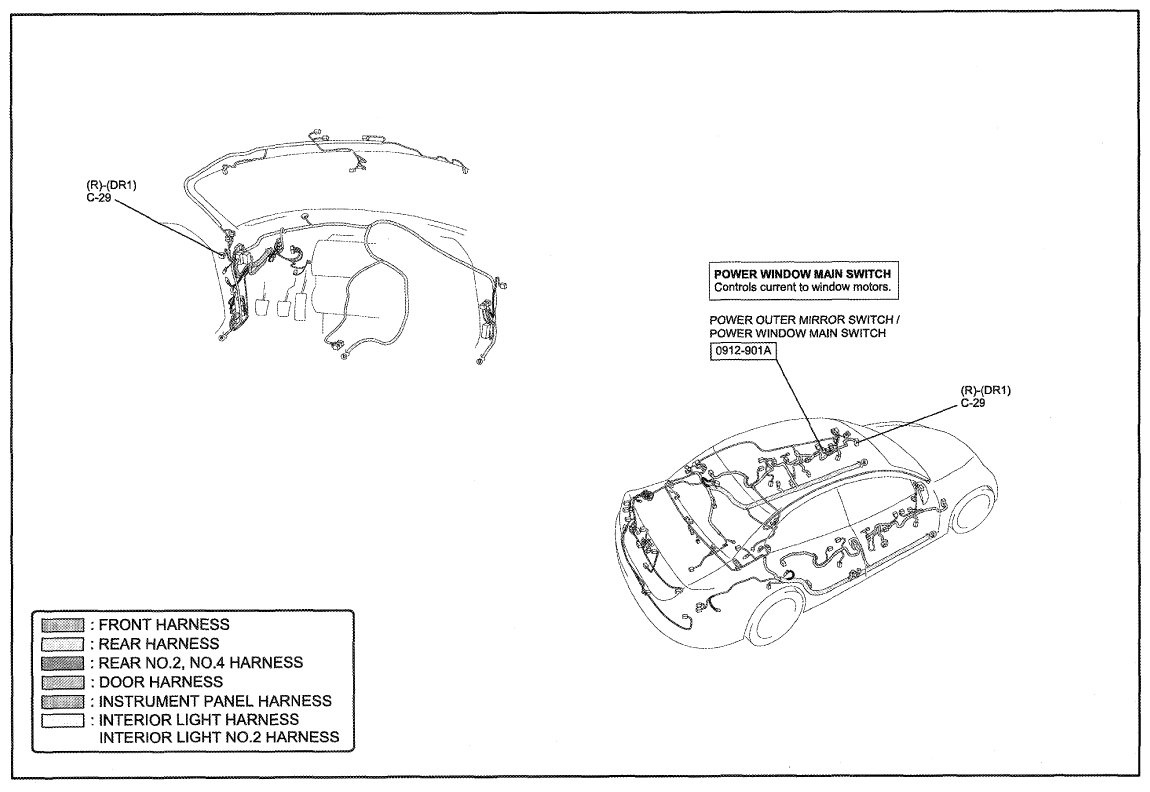

Fig 7: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9d); 1 Of 2

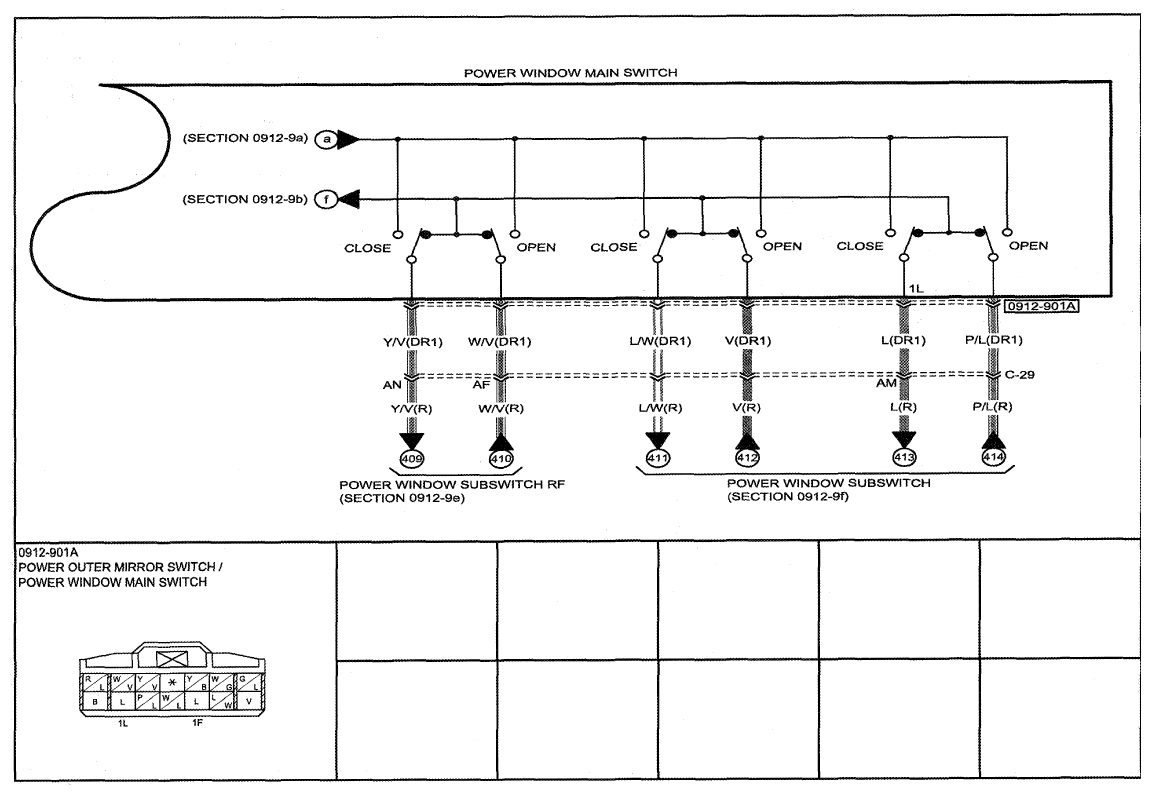

Fig 8: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9d); 2 Of 2

Fig 9: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9e); 1 Of 2

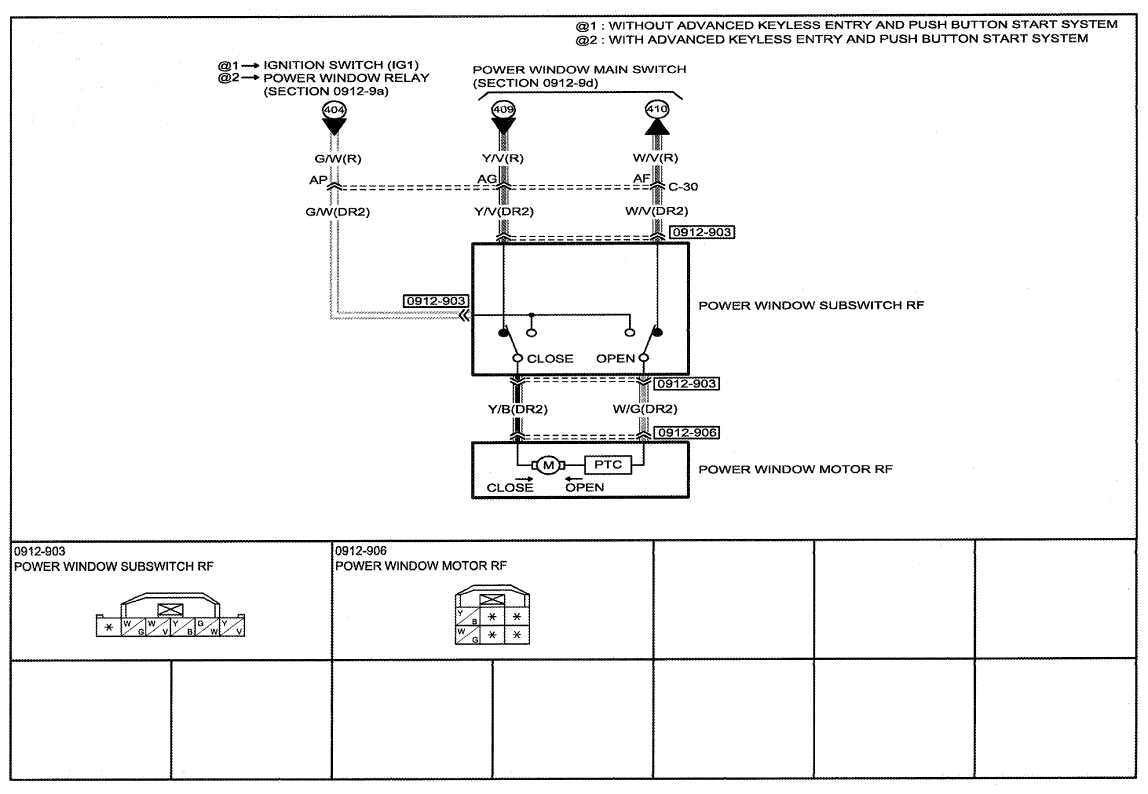

Fig 10: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9e); 2 Of 2

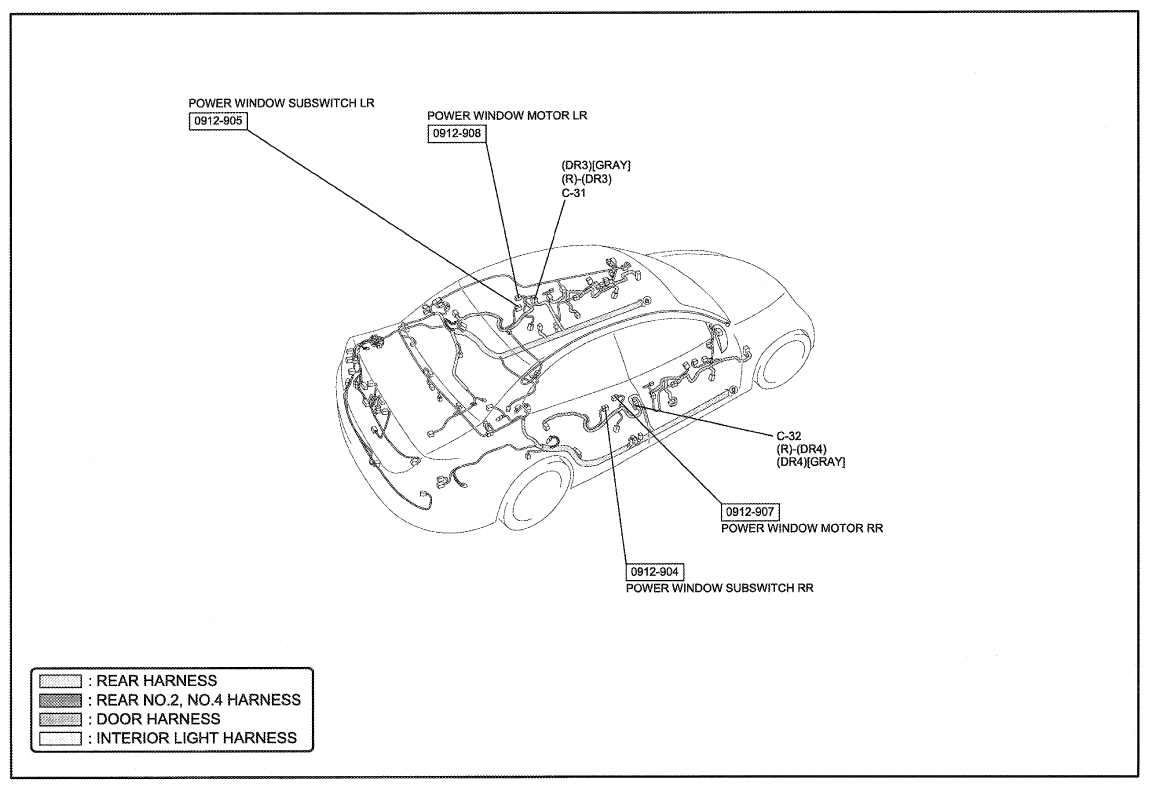

Fig 11: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9f); 1 Of 2

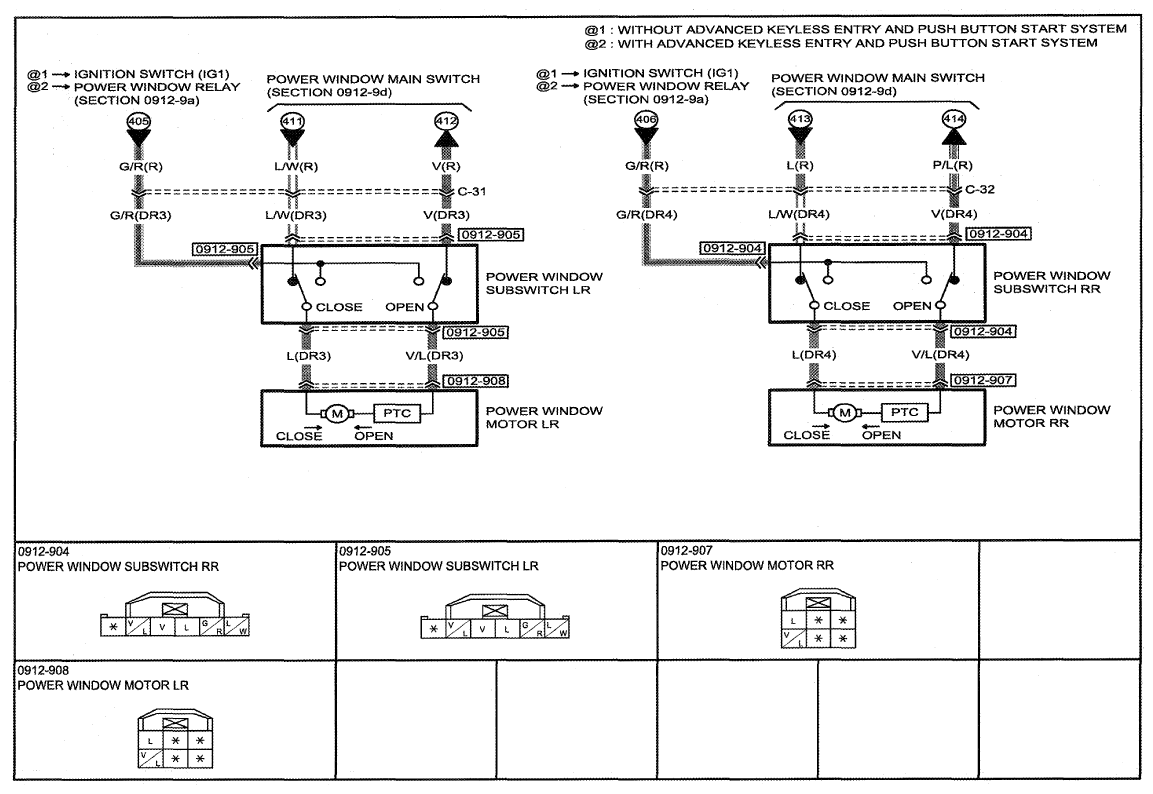

Fig 12: Power Window System (Auto-Open/Close Function For Front Window) Wiring Diagram (0912-9f); 2 Of 2
