Fuel Pump Unit Disassembly/Assembly

  1. Remove the fuel pump unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

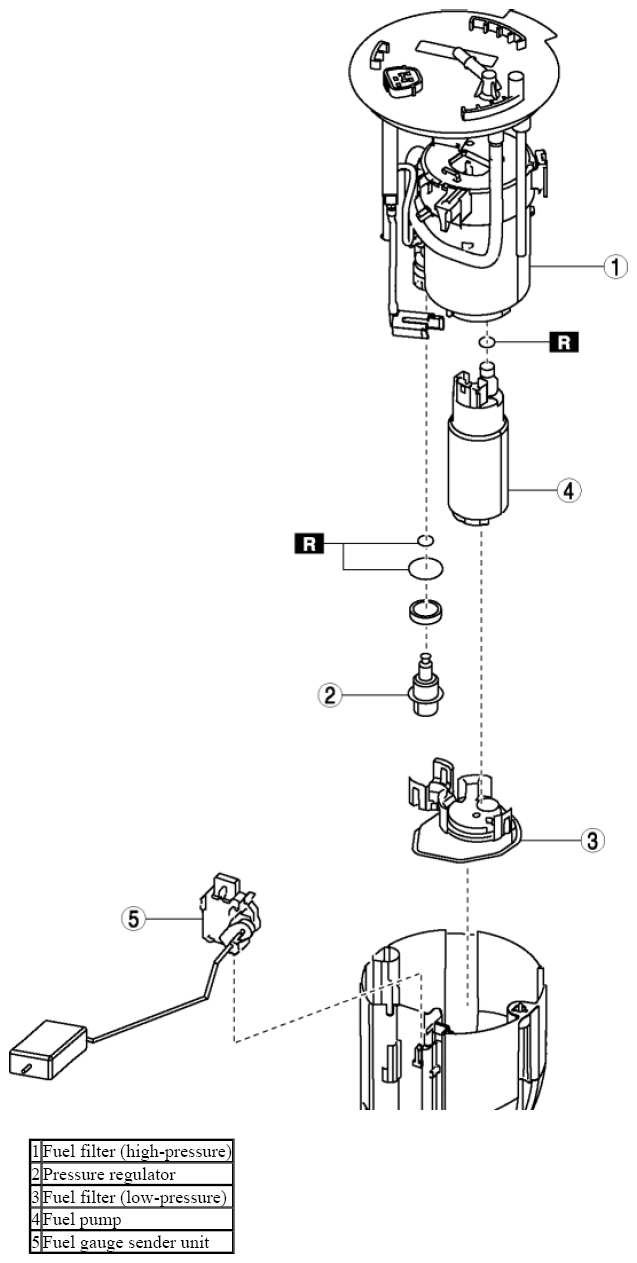

    Fig 1: Identifying Fuel Pump Unit Components
    G08140531
