Set Plate Removal Note

  1. Install the SST  shown in the figure.

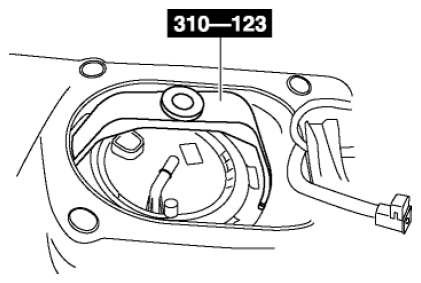

    Fig 1: Identifying SST 310-123 Set Plate Removal Tool
    G08140530
  2. Remove the set plate using the SST  .
