Visual Inspection

Inspect the following items:

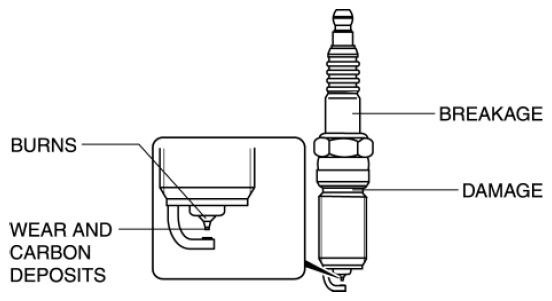

Fig 1: Identifying Spark Plug Inspection Points
- If any of the following malfunctions are indicated, replace the spark plug.
  - Insulator breakage
  - Worn electrode
  - Damaged gasket
  - Badly burned insulator (sparking side)
