Symptom Troubleshooting [Engine Control System MZR 2.5]
›
Control System Device And Control Relationship Chart
Control System Device And Control Relationship Chart

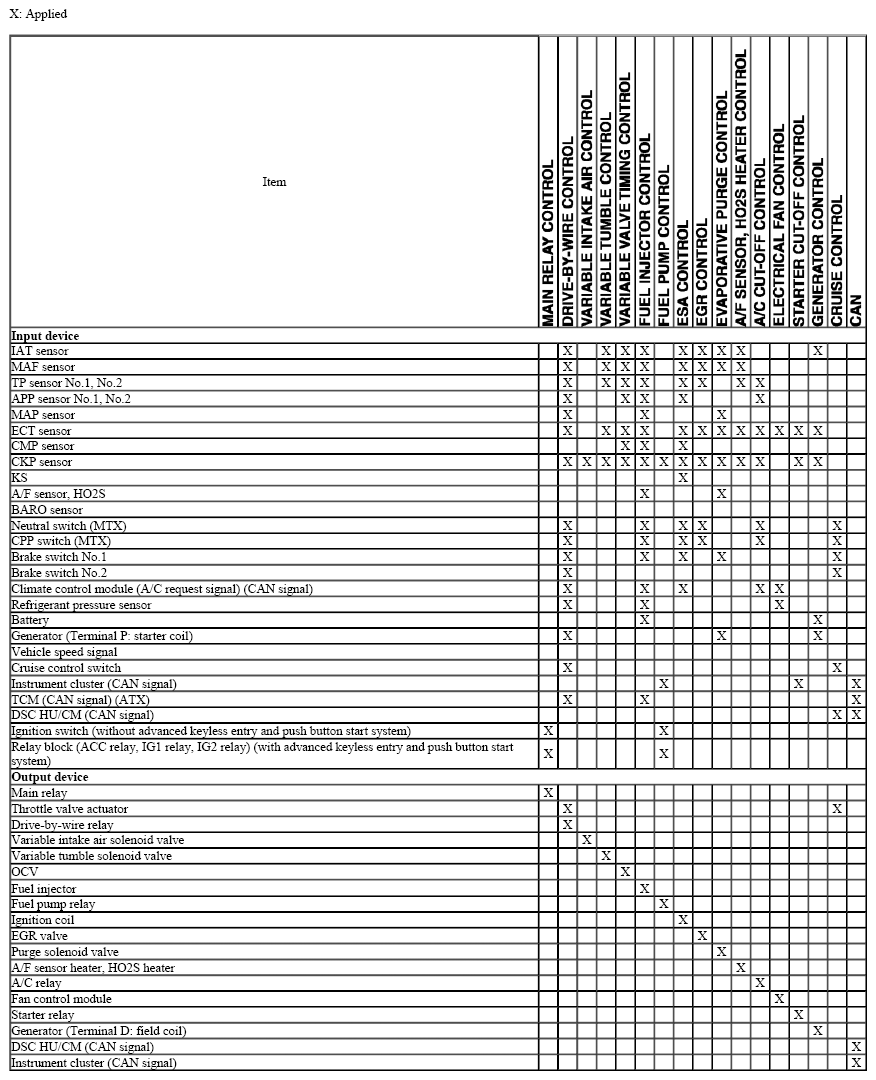

Fig 1: Engine Control System Device And Control Relationship Chart (MZR 2.5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
