Symptom Troubleshooting [Engine Control System MZR 2.5]
›
Symptom Troubleshooting Wiring Diagram
Symptom Troubleshooting Wiring Diagram

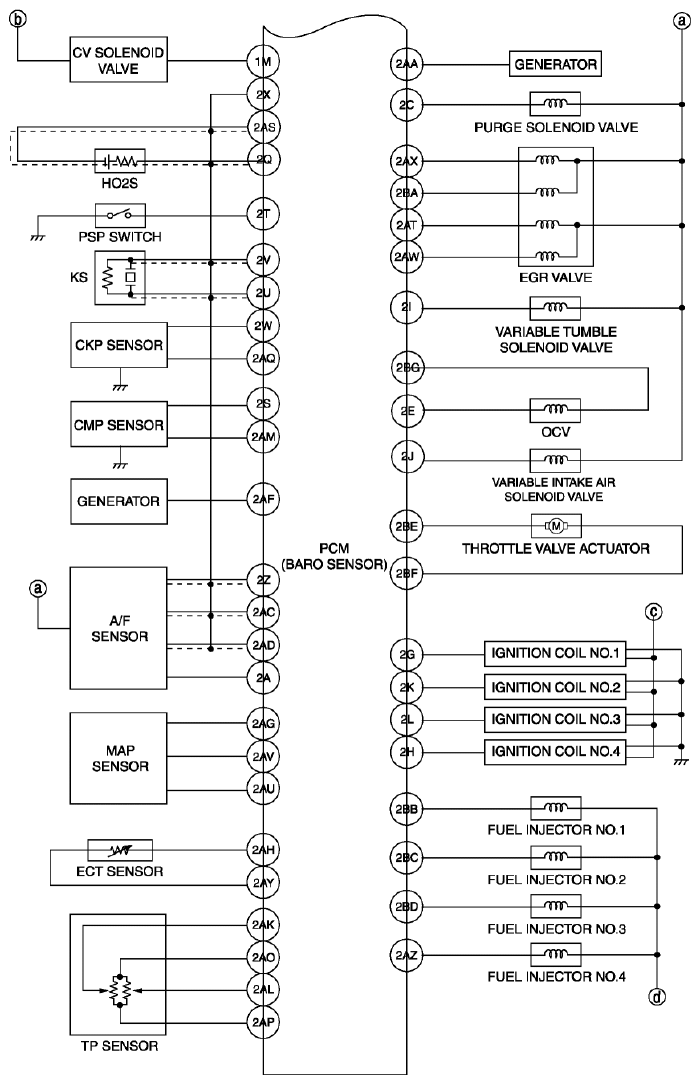

Fig 1: Engine Control System Symptom Troubleshooting Wiring Diagram - MZR 2.5 (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

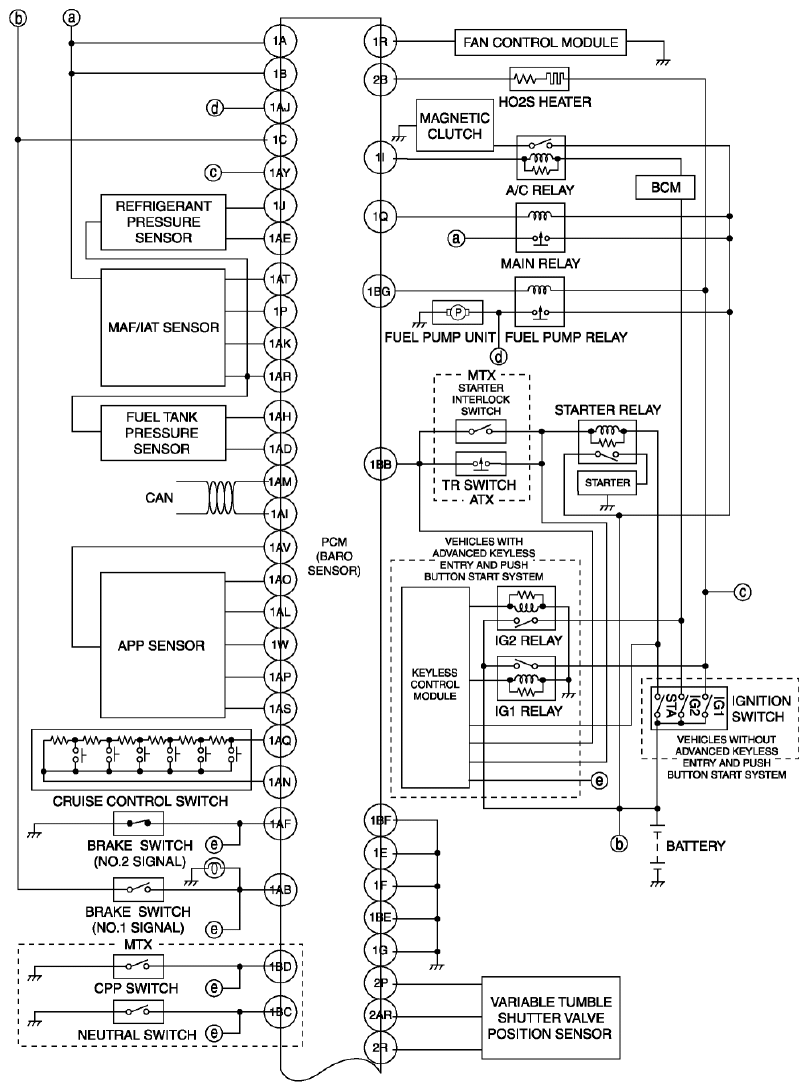

Fig 2: Engine Control System Symptom Troubleshooting Wiring Diagram - MZR 2.5 (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
