HO2S heater control

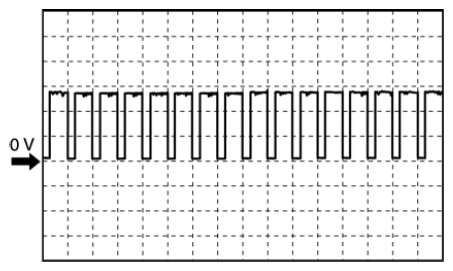

Fig 1: HO2S Heater Control Waveform

PCM terminals

• 2B(+)-body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 s/DIV (X), DC range

Vehicle condition

• Idle (immediately after starting the engine)
