Advanced Keyless Entry System/Push Button Start System/Immobilizer System
Advanced Keyless Entry System/Push Button Start System/Immobilizer System

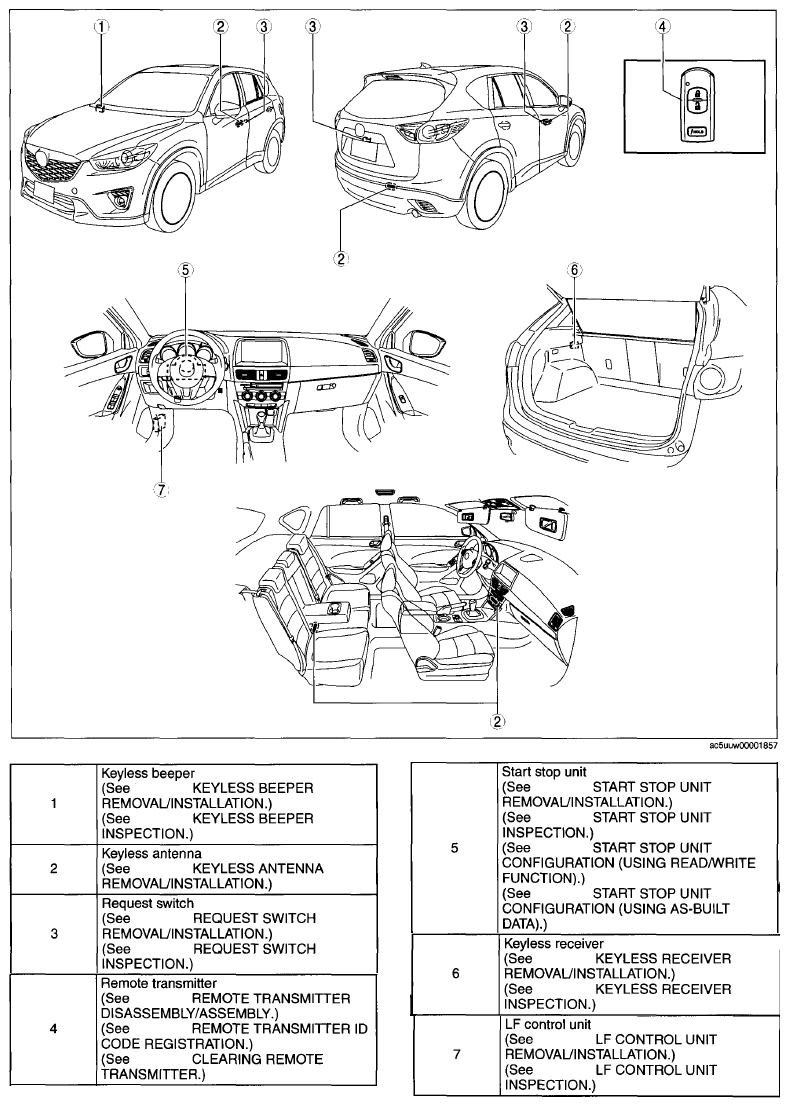

Fig 1: Advanced Keyless Entry System Components Location
