Air Hose Installation Note

Install the air hose as shown in the figure.

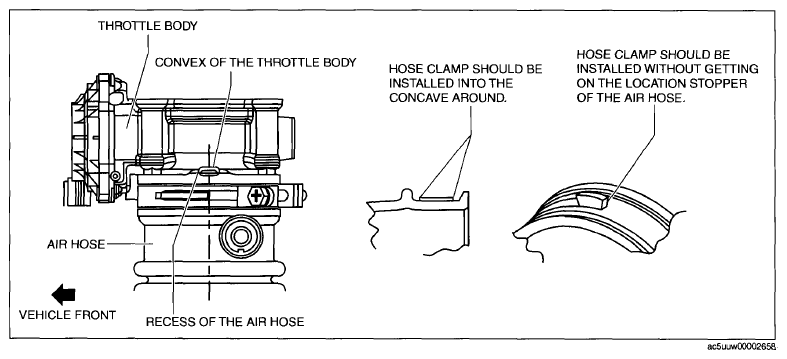

Throttle body side

Fig 1: Identifying Air Hose, Recess Of Air Hose, Throttle Body And Convex Of Throttle Body

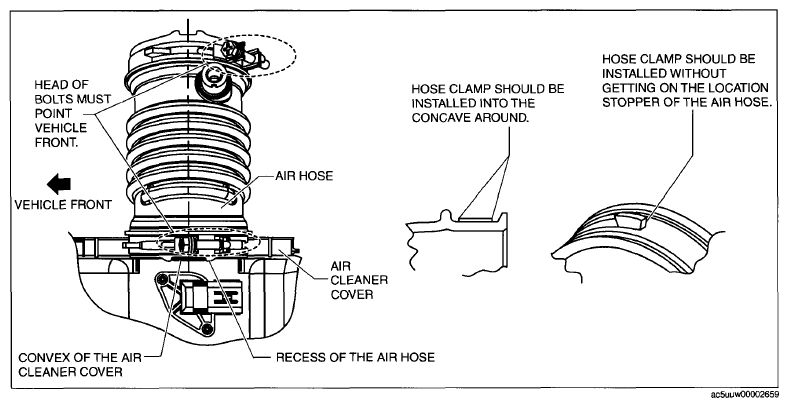

Air cleaner side

Fig 2: Identifying Air Hose, Recess Of Air Hose, Air Cleaner Cover And Convex Of Air Cleaner Cover
