Vacuum Hose Installation Note

  1. Install the vacuum hose as shown in the figure.

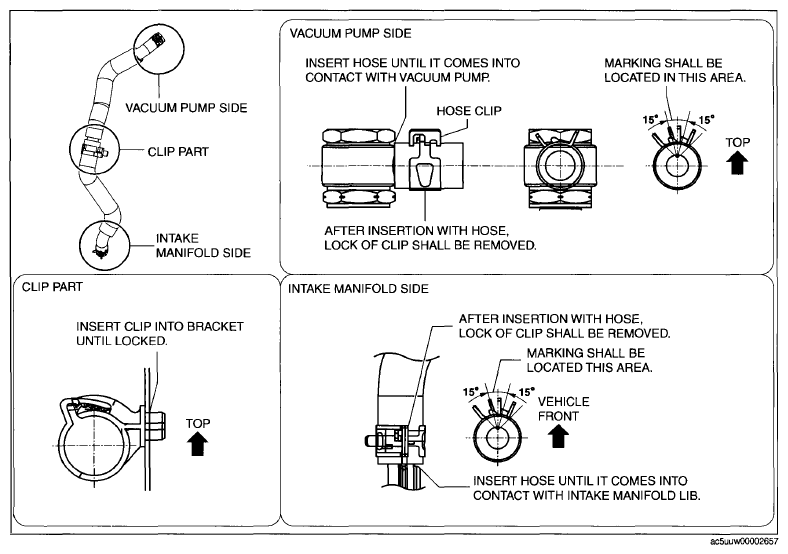

    Fig 1: Identifying Vacuum Hose Installation Position
    G09074403
