Front Door Lock-link Inspection

  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION ).
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION ).
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION ).
    4. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION ).
    5. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION ).
    6. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION ).
  4. When the door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.
    Fig 1: Lock Knob Position Terminal Reference Chart
    G06731951

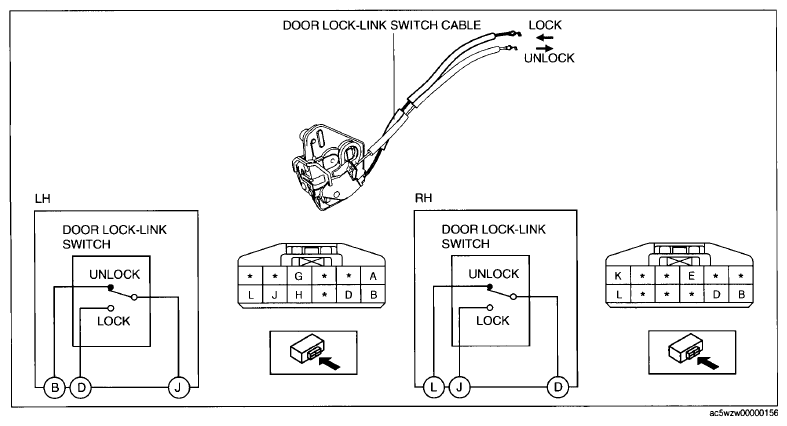

    Fig 2: Door Lock-Link Switch - Circuit Diagram
    G09077036
    • If not as indicated in the table, replace the front door latch and lock actuator.
