Rear Door Latch Switch Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the following parts:
1. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION ).
2. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION ).
3. Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION ).
Verify that the continuity is as indicated in the table.

Fig 1: Door Latch Switch Terminal Reference Chart

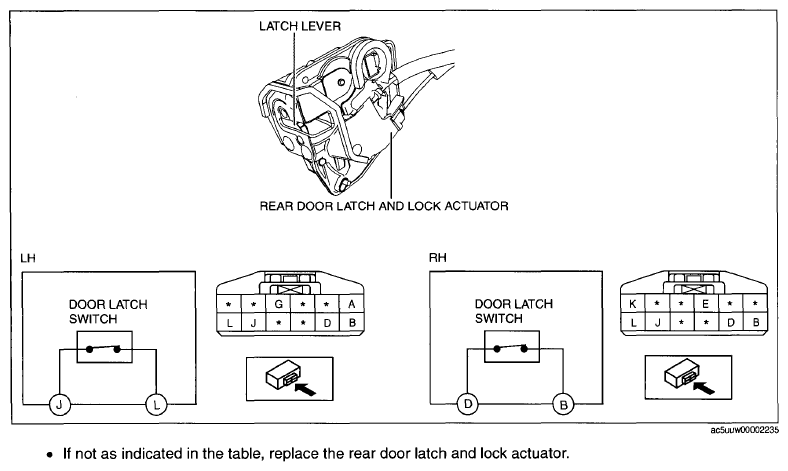

Fig 2: Door Latch Switch - Circuit Diagram
- If not as indicated in the table, replace the rear door latch and lock actuator.
NOTE:
- When inspecting the latch side of the rear door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
Fig 3: Adjusting Rear Door Latch Switch
