Audio Unit Connector End View
Audio Unit Connector End View

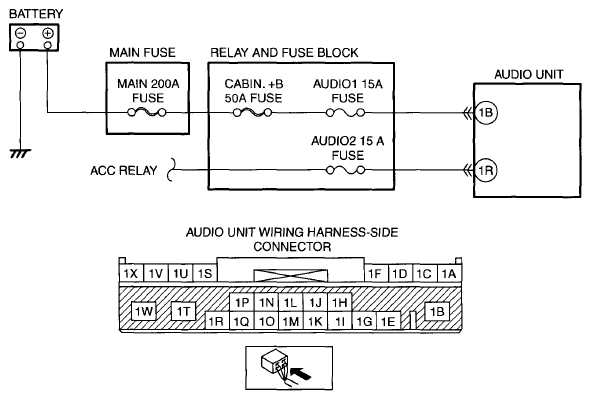

Fig 1: Audio Unit Connector End View
Courtesy of MAZDA MOTORS CORP.
