TCS OFF Switch Connector End View
TCS OFF Switch Connector End View

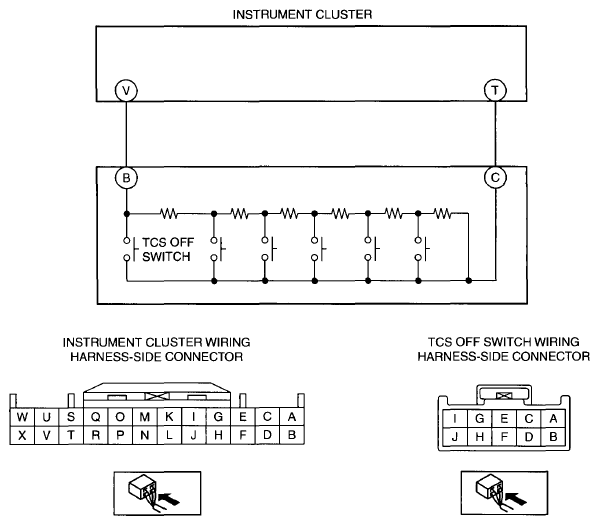

Fig 1: TCS OFF Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
