Automatic Transaxle Control System

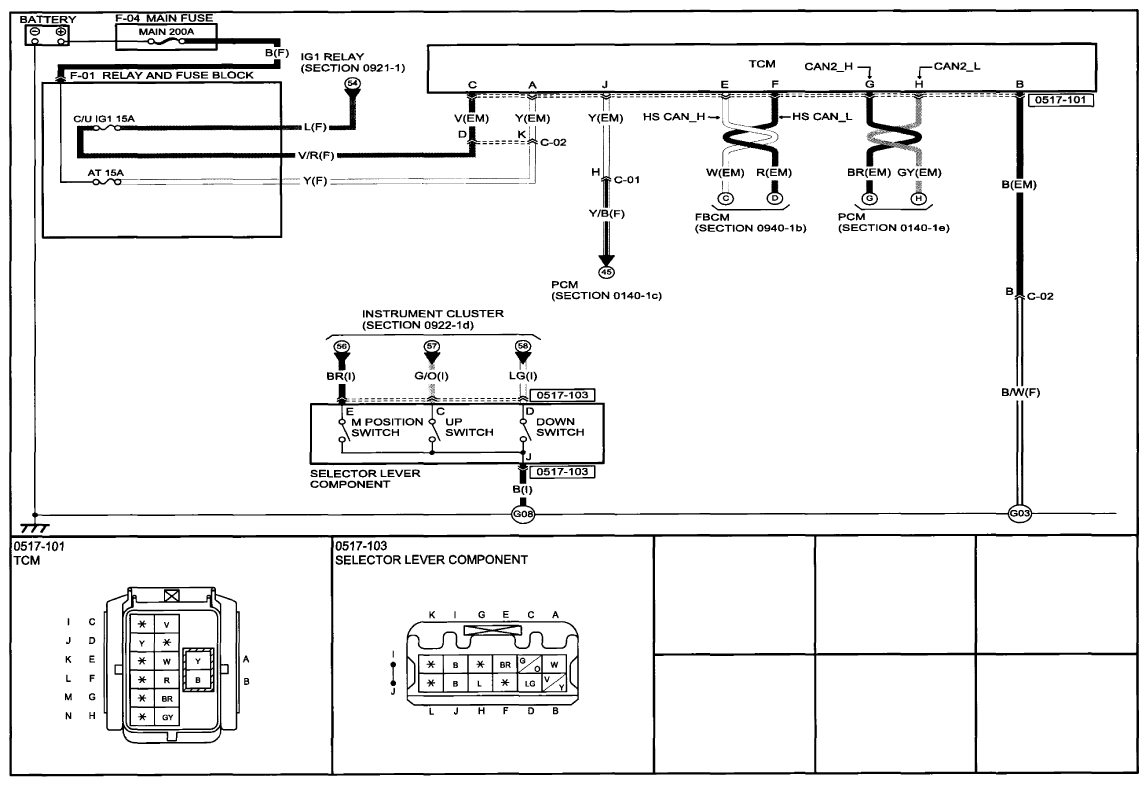

Fig 1: Automatic Transaxle Control System Wiring Diagram (0517-1) 1 Of 2

G09120237

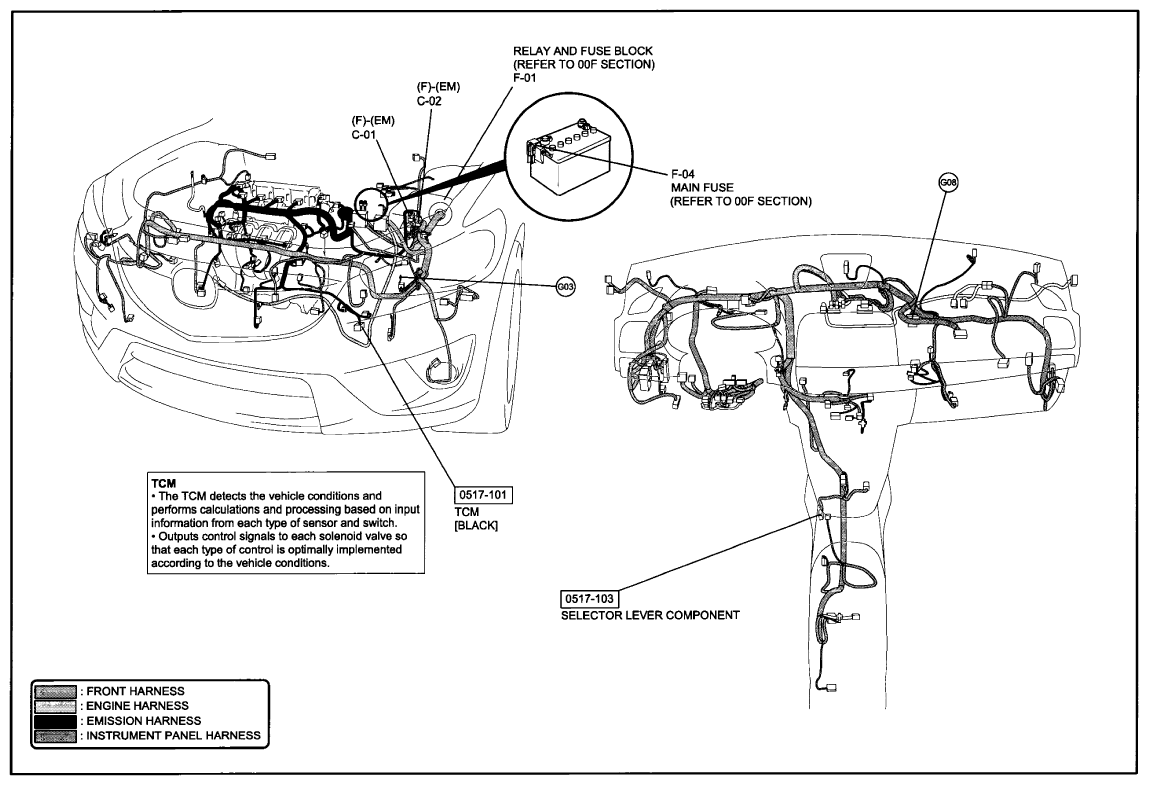

Fig 2: Automatic Transaxle Control System Wiring Harness Routing Diagram (0517-1) 2 Of 2

G09120238
