Battery Removal/Installation [SKYACTIV-G 2.0]: Notes

Remove in the order indicated in the table.
Install in the reverse order of removal.

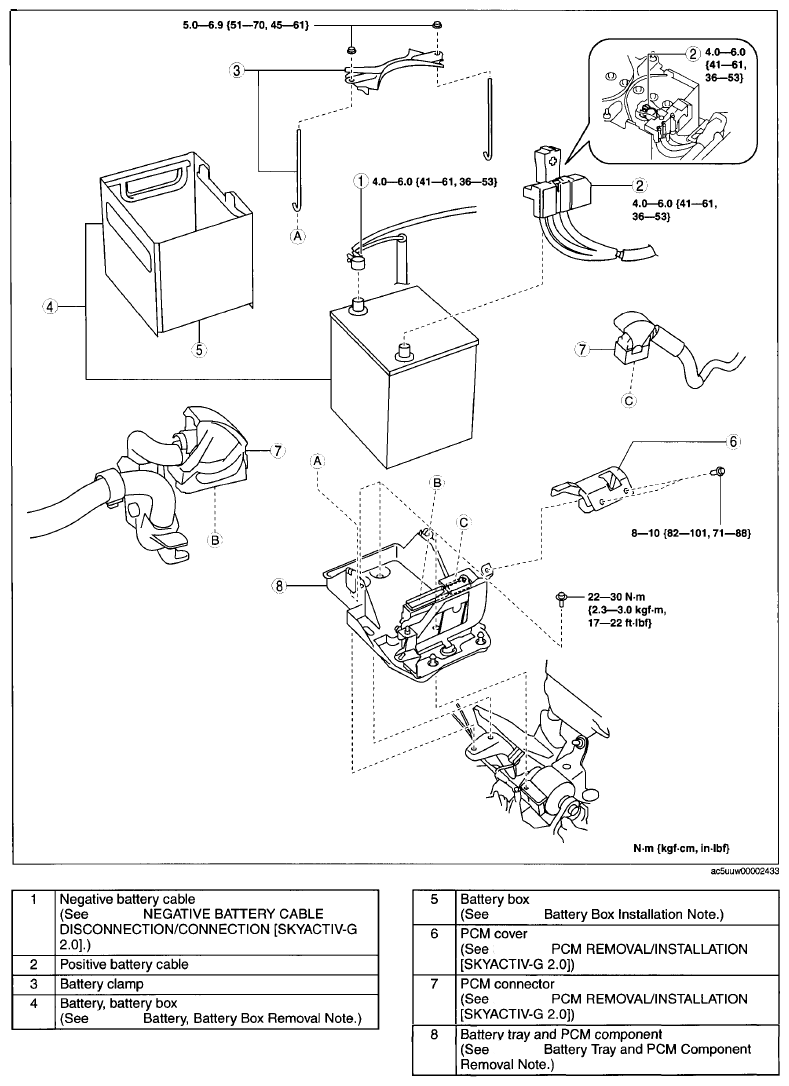

Fig 1: Exploded View Of Charging System With Torque Specifications
