Oil Cooler Water Pipe Component Installation Note

Install the oil cooler water pipe component in the order shown in the figure.
Tightening torque 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}

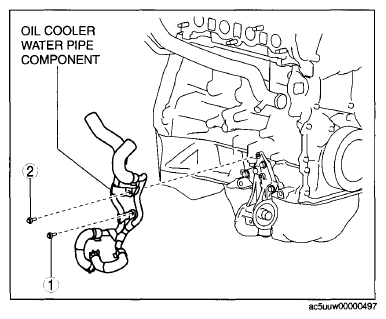

Fig 1: Identifying Oil Cooler Water Pipe And Mounting Bolts Tightening Sequence
