No.1 Engine Mount (AWD): Notes

NOTE:
  • When removing the No.1 engine mount rubber for AWD vehicles, loosen the front crossmember installation bolts and perform the procedure with the front crossmember component lowered to 15-20 mm {0.60-0.78 in}.
  • When removing the No.1 engine mount bracket for AWD vehicles, perform the procedure with the front crossmember component and transfer completely removed from the vehicle.
  1. Remove the front under cover No.1 and front under cover No.2. (See FRONT UNDER COVER NO.1 REMOVAL/INSTALLATION ). (See FRONT UNDER COVER NO.2 REMOVAL/INSTALLATION ).
  2. Set the front mudguard away from the front crossmember and front bumper. (See MUDGUARD REMOVAL/INSTALLATION ).
  3. Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. Inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT ).
    Fig 1: Identifying Front Mudguard
    G09074271

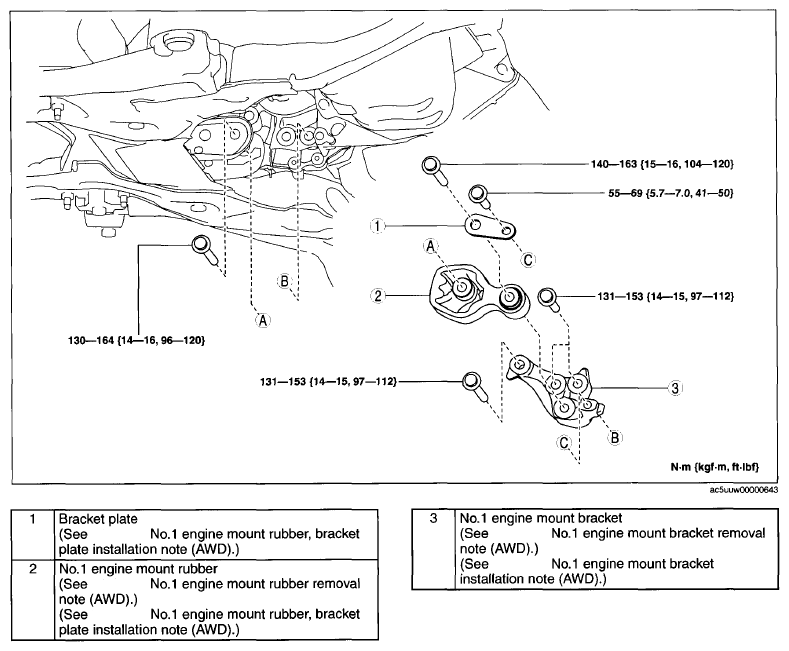

    Fig 2: No.1 Engine Mount Rubber, Bracket, Bracket Plate And Mounting Bolts With Torque Specifications
    G09074272
