Engine Removal/Installation: AWD

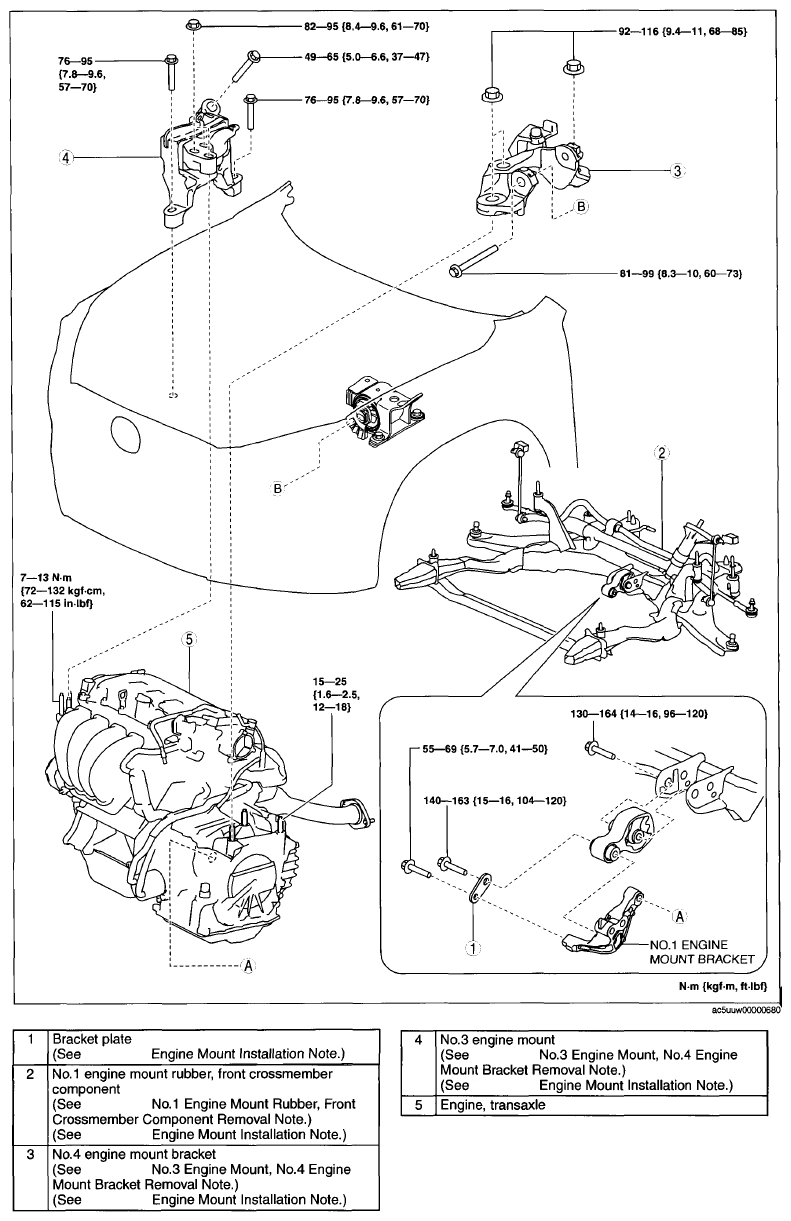

Fig 1: Bracket Plate, Engine Mount Rubbers, Brackets, Nuts And Bolt With Torque Specifications (AWD)
G09074306
