Front Oil Seal Replacement: Notes

WARNING:

A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

Remove the front under cover No.2. (See FRONT UNDER COVER NO.2 REMOVAL/INSTALLATION ).
Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION ).
Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION ). E
Remove in the order indicated in the table.
Install in the reverse order of removal.

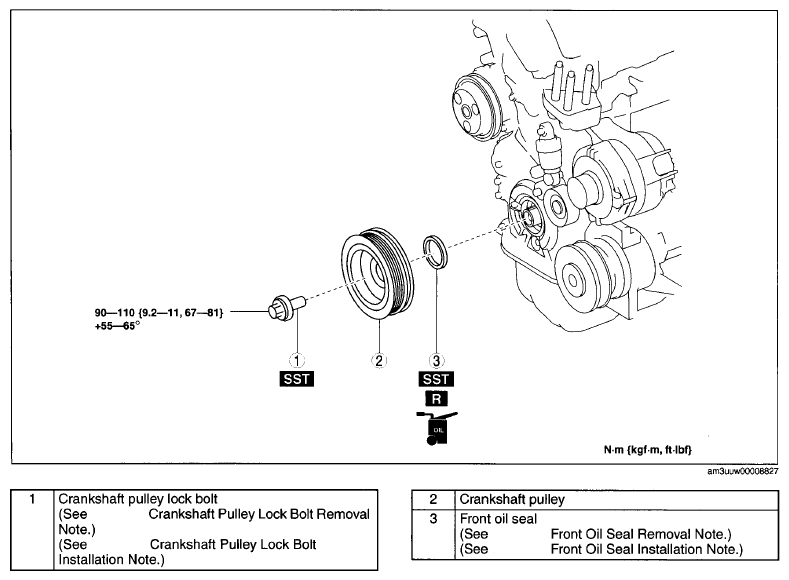

Fig 1: Crankshaft Pulley, Lock Bolt And Front Oil Seal With Torque Specifications
