Accelerator Pedal Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove in the order indicated in the table.
Install in the reverse order of removal.

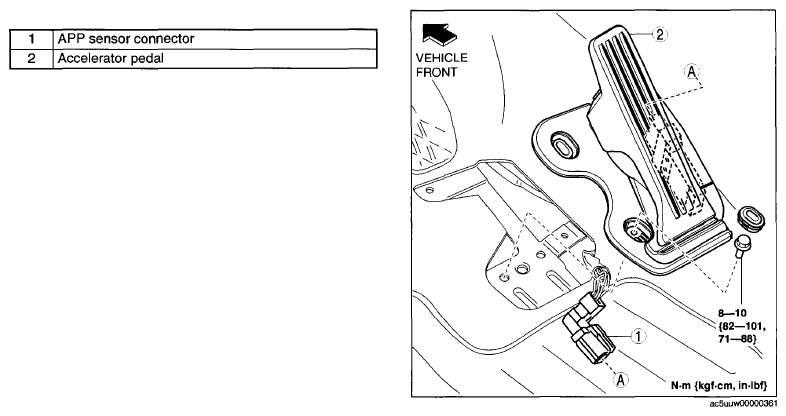

Fig 1: Accelerator Pedal And APP Sensor Connector With Torque Specifications
