Home › Mazda › 2013 › CX-5 Touring, AWD › Repair and Diagnosis › Engine Performance › Remove, Overhaul & Install › Intake-Air System › Intake-Air System Location Index

Intake-Air System Location Index

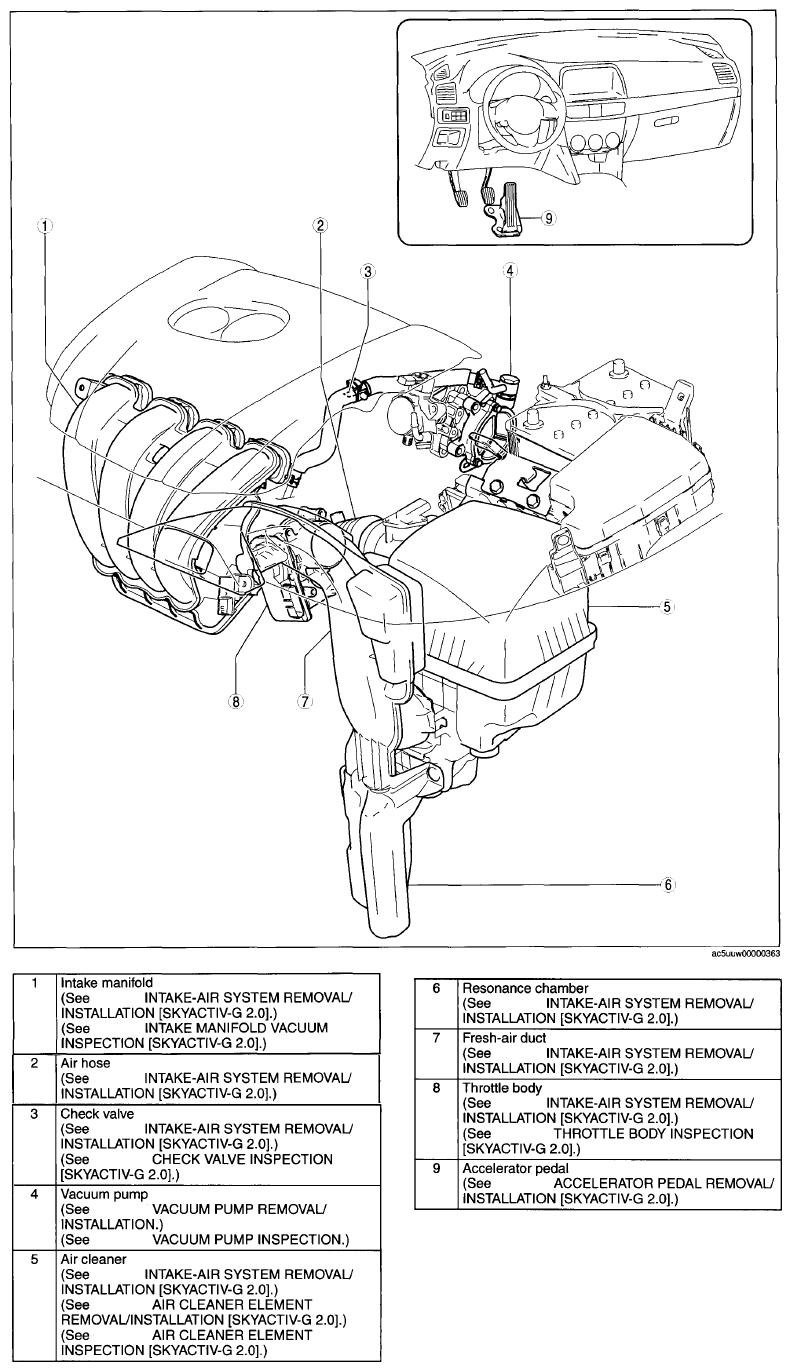

Fig 1: Intake-Air System Components Location
G09074396
