DTC P2107-00: Throttle Valve Actuator Control Module Processor Error: Notes

DETECTION CONDITION AND POSSIBLE CAUSE

DTC P2107:00	Throttle valve actuator control module processor error
DETECTION CONDITION	Throttle valve actuator control module internal processor error. Diagnostic support note  This is a continuous monitor (CCM). The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Restricts the upper limit of the engine speed. Stops the drive-by-wire control (throttle valve is open at approx. 8  ° by return spring force).

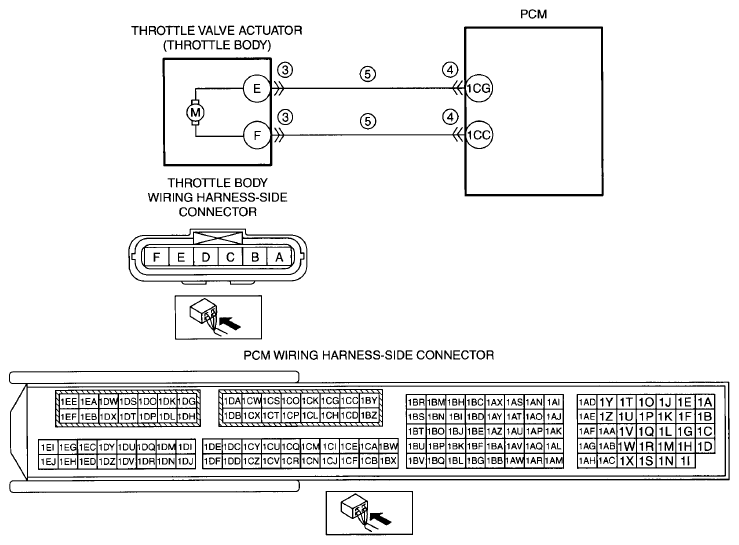

POSSIBLE CAUSE	Throttle body connector or terminals malfunction PCM connector or terminals malfunction Throttle body circuits are shorted to each other PCM malfunction Throttle valve actuator control module internal processor malfunction
