DTC U0336-00: SAS Control Module Error: Notes
DTC U0336:00 [SKYACTIV-G 2.0] DETECTION CONDITIONS & POSSIBLE CAUSES
| DTC U0336:00 |
SAS control module error |
| DETECTION CONDITION |
- When any of the following conditions is met:

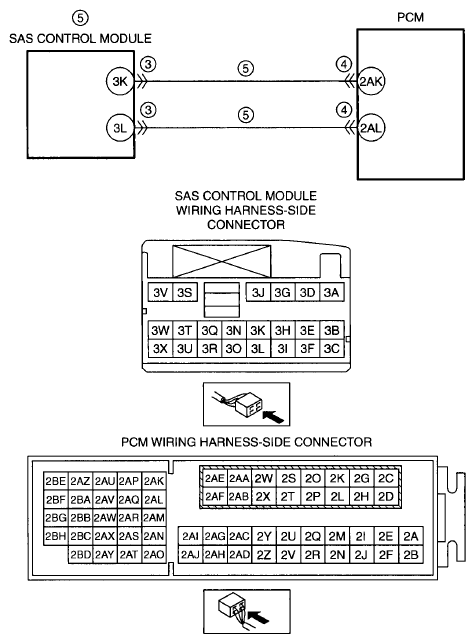

- CAN communication line between SAS control module and PCM malfunction
- SAS control module internal malfunction
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
- The DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- |
| POSSIBLE CAUSE |
- CAN drive error (instrument cluster or PCM)
- SAS control module connector or terminals malfunction
- PCM connector or terminals malfunction
- CAN communication line between PCM and SAS control module malfunction
- SAS control module malfunction
- PCM malfunction
|
|
|
