Control System Device And Control Relationship Chart

x: Applicable

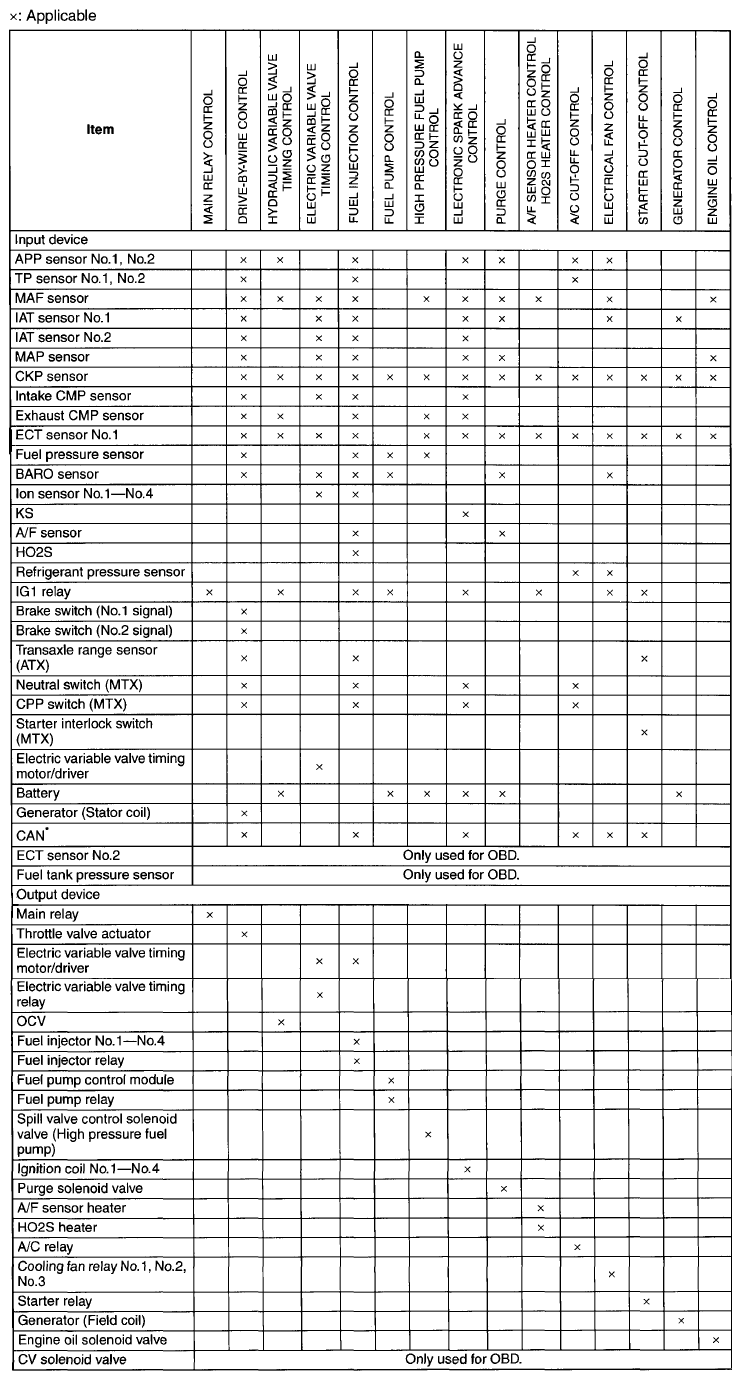

Fig 1: Control System Device And Control Relationship Chart

G09074054

*: TCM (ATX), DSC HU/CM, instrument cluster, start stop unit
