Manual Transaxle Oil Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Park the vehicle on level ground.
  2. Remove the front under cover No.2. (See FRONT UNDER COVER NO.2 REMOVAL/INSTALLATION ).
  3. Remove the drain plug and gasket, and drain the manual transaxle oil.
  4. Install a new gasket and the drain plug.

    Tightening torque

    39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}

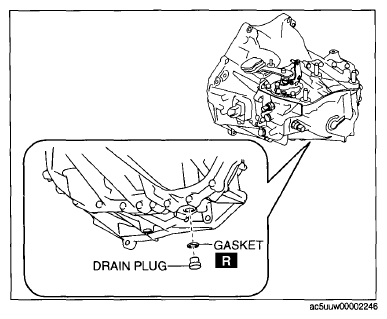

    Fig 1: Identifying Drain Plug And Gasket
    G09075332
  5. Remove the oil level plug and gasket.
  6. Add the specified manual transaxle oil through the oil level plug port.

    Manual transaxle oil grade

    API service GL-4

    Manual transaxle oil viscosity

    SAE 75W-80

    Manual transaxle oil capacity (approx. quantity)

    1.65 L {1.74 US qt, 1.45 Imp qt}

    Fig 2: Identifying High And Low Level Of Manual Transaxle Oil
    G09075333
  7. Install a new gasket and the oil level plug.

    Tightening torque

    39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}

  8. Install the front under cover No.2. (See FRONT UNDER COVER NO.2 REMOVAL/INSTALLATION ).
