Using the quick diagnosis chart

• The related malfunction cause can be understood.
• The relation between the malfunction symptom and cause is indicated.
• The relation between the malfunction symptom and cause can be detected quickly, and if multiple malfunction symptoms occur, the area which is the common cause among the multiple malfunctions can be specified.
• The effective inspection procedure for the malfunction cause specified from the malfunction symptoms can be selected using the inspection procedure chart.

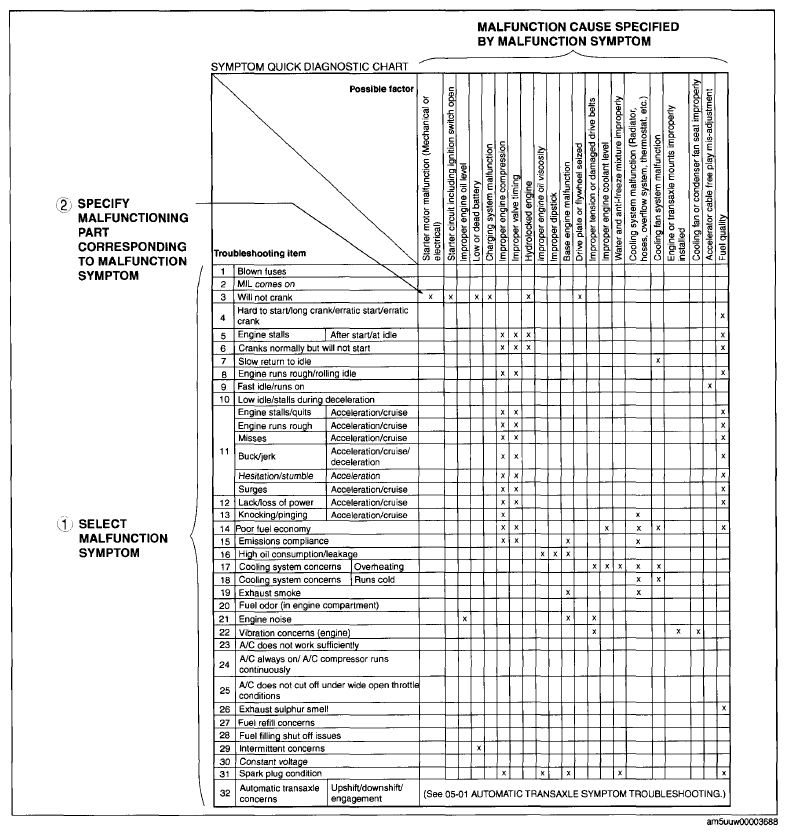

Fig 1: Quick Diagnosis Chart
