A/C Compressor Control Connector End View (0740-3)
A/C Compressor Control Connector End View (0740-3)

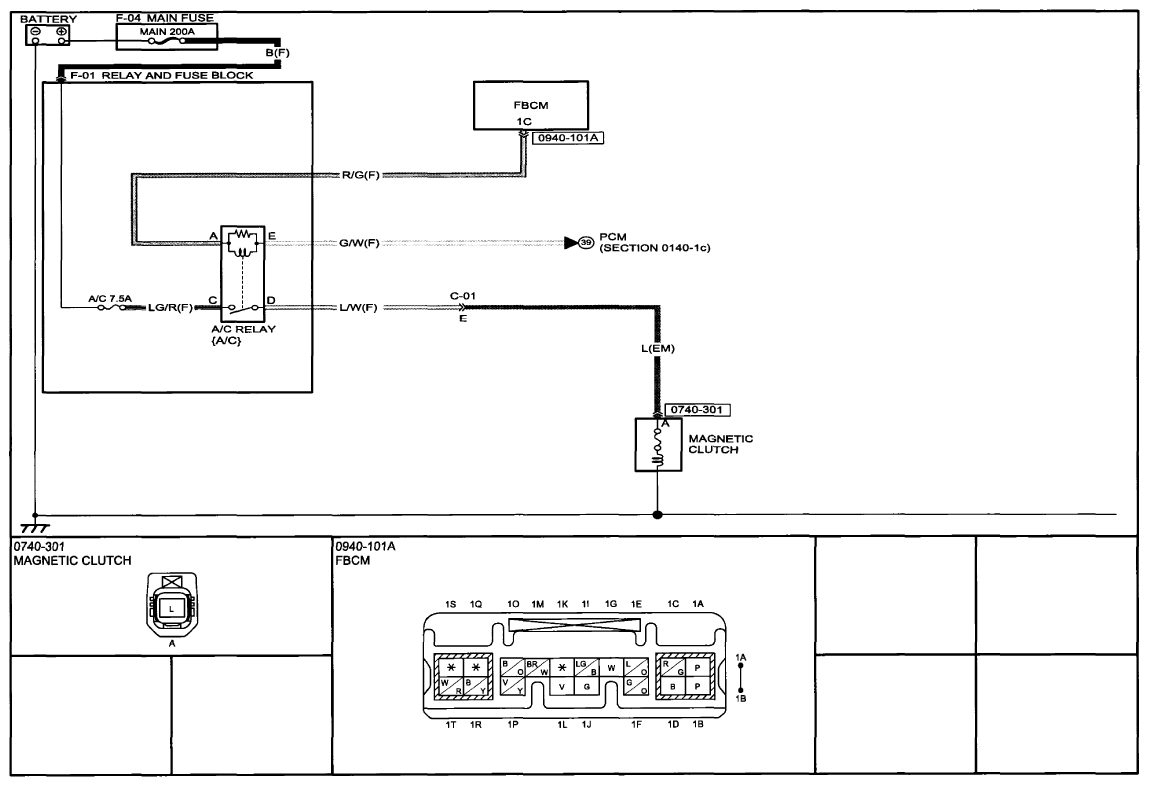

Fig 1: A/C Compressor Control Connector End View (0740-3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
