Steering Gear And Linkage Assembly: Notes

CAUTION:

To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

Assemble in the order shown in the figure.

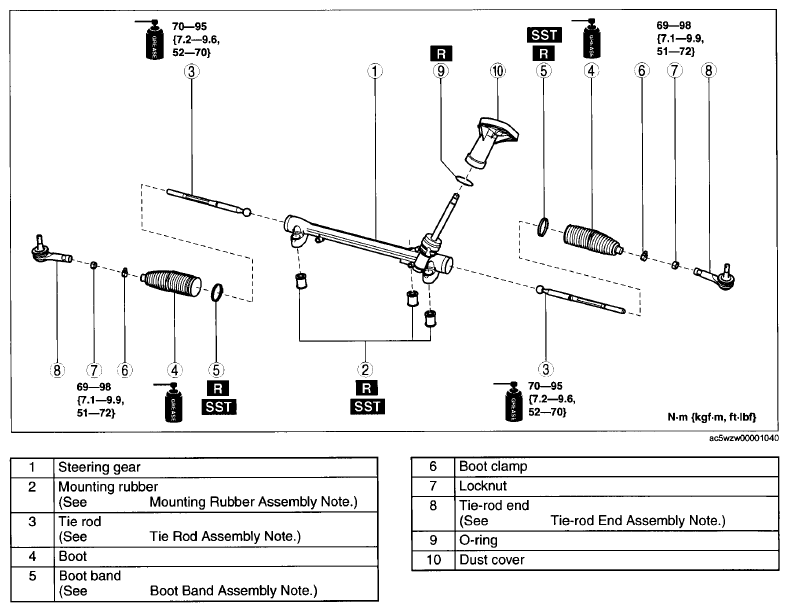

Fig 1: Assembled View Of Steering Gear And Linkage Assembly With Torque Specifications
