No.3 Engine Mount Installation Note

CAUTION:

If the No.3 engine mount is deviated from the original position when installing the No.3 engine mount, engine noise or vibration could increase. When installing the No.3 engine mount, align the alignment mark placed during removal and install it to the original position.

NOTE:

When replacing the No.3 engine mount, place a mark at the same position as the one placed before removal.
If the No.3 engine mount nut is loosened, tighten the stud bolts for the No.3 engine mount bracket because they may be loosened.

Tighten the No.3 engine mount stud bolts.
Tightening torque 7-13 N.m {72-132 kgf.cm, 62-115 in.lbf}
Temporarily tighten the No.3 engine mount installation bolts and nuts using the following procedure:

Fig 1: Identifying No.3 Engine Mount Stud Bolts
1. Align the alignment marks on the body side and No.3 engine mount, and temporarily tighten the bolts shown in the figure.

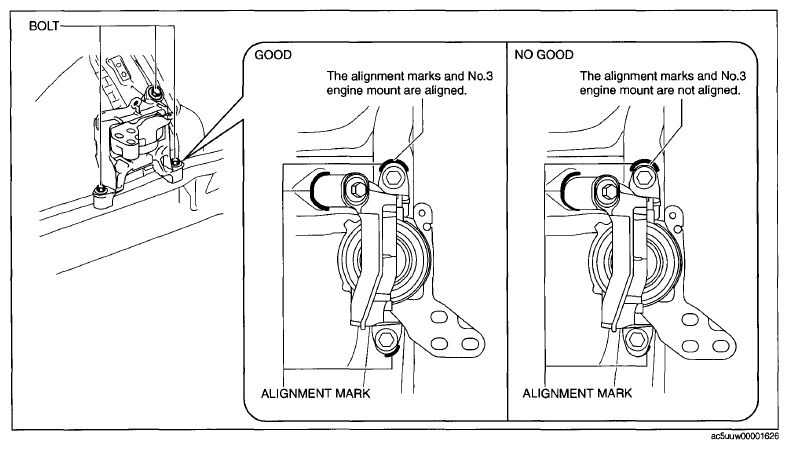

  Fig 2: Identifying Proper And Improper Alignment Marks On Body Side And No.3 Engine Mount
2. Temporarily tighten the nuts shown in the figure while aligning the alignment marks of the No.3 engine mount and nuts.

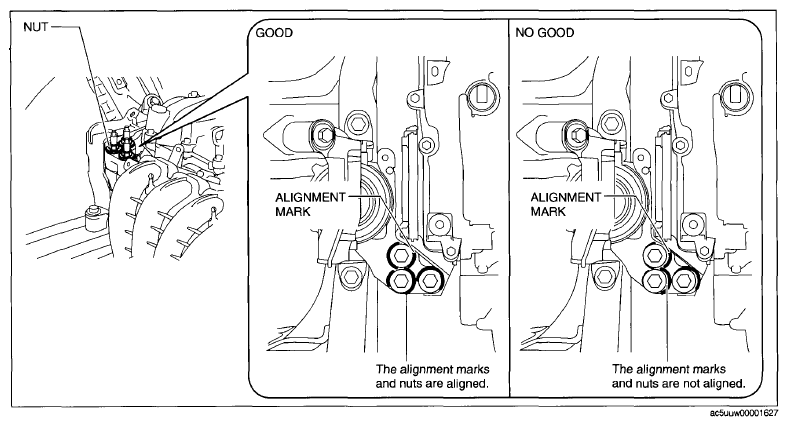

  Fig 3: Identifying Proper And Improper Alignment Marks On No. 3 Engine Mount And Nuts
  NOTE:
  - If the alignment marks are not aligned, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.

Tighten the No.3 engine mount installation bolts and nuts in the order as shown in the figure.

Remove the SST .
Install the clip of ground cable to the No.3 engine mount.

Fig 4: Identifying No.3 Engine Mount Installation Bolts And Nuts Tightening Sequence
