DRL Control Module Removal/Installation

1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
3. Disconnect the connectors.
4. Remove the screw and then remove the DRL control module.
5. Install in the reverse order of removal.

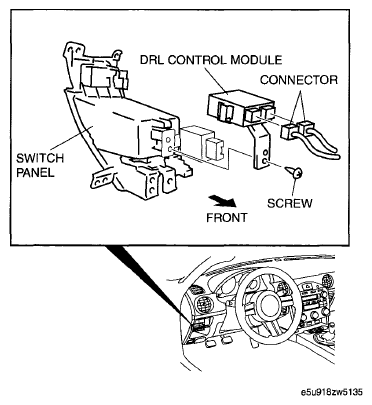

Fig 1: Screw And DRL Control Module

Courtesy of MAZDA MOTORS CORP.
