Request Switch Removal/Installation: Driver-Side/Passenger-Side

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION )
3. Remove the outer handle. (See OUTER HANDLE REMOVAL/INSTALLATION )
4. Remove the screws A, then remove the handle seat and plate.
5. Remove screw B, then remove the request switch.
6. Install in the reverse order of removal.

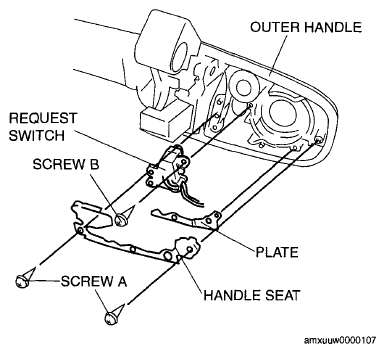

Fig 1: Outer Handle, Handle Seat, Plate, And Request Switch

Courtesy of MAZDA MOTORS CORP.
