Keyless Entry System and Immobilizer System
Keyless Entry System and Immobilizer System

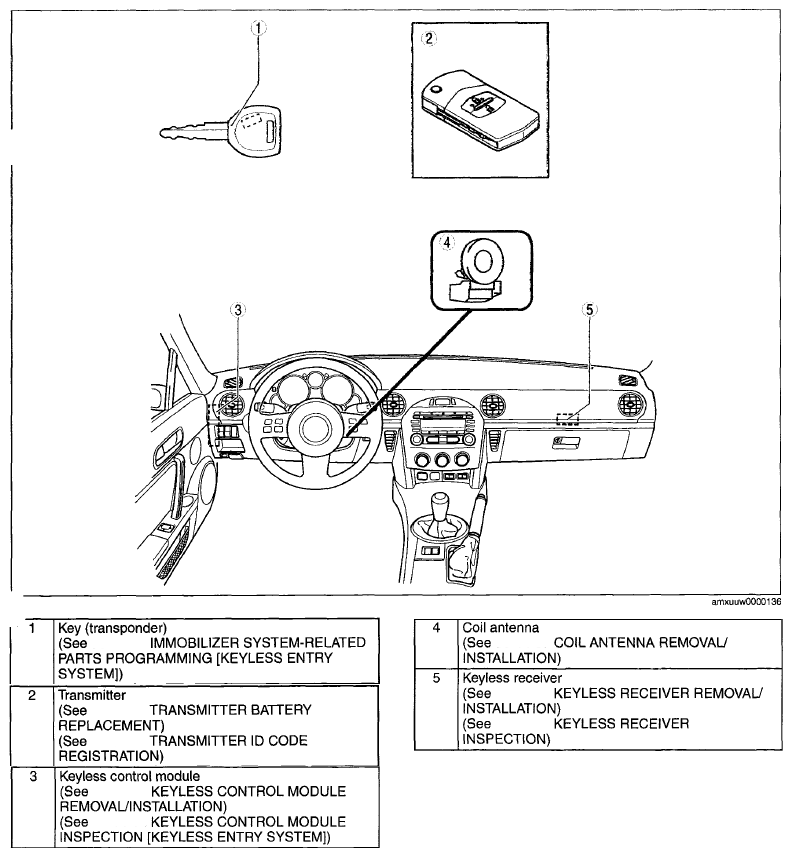

Fig 1: Keyless Entry System And Immobilizer System Part Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
