Data Link Connector
Data Link Connector

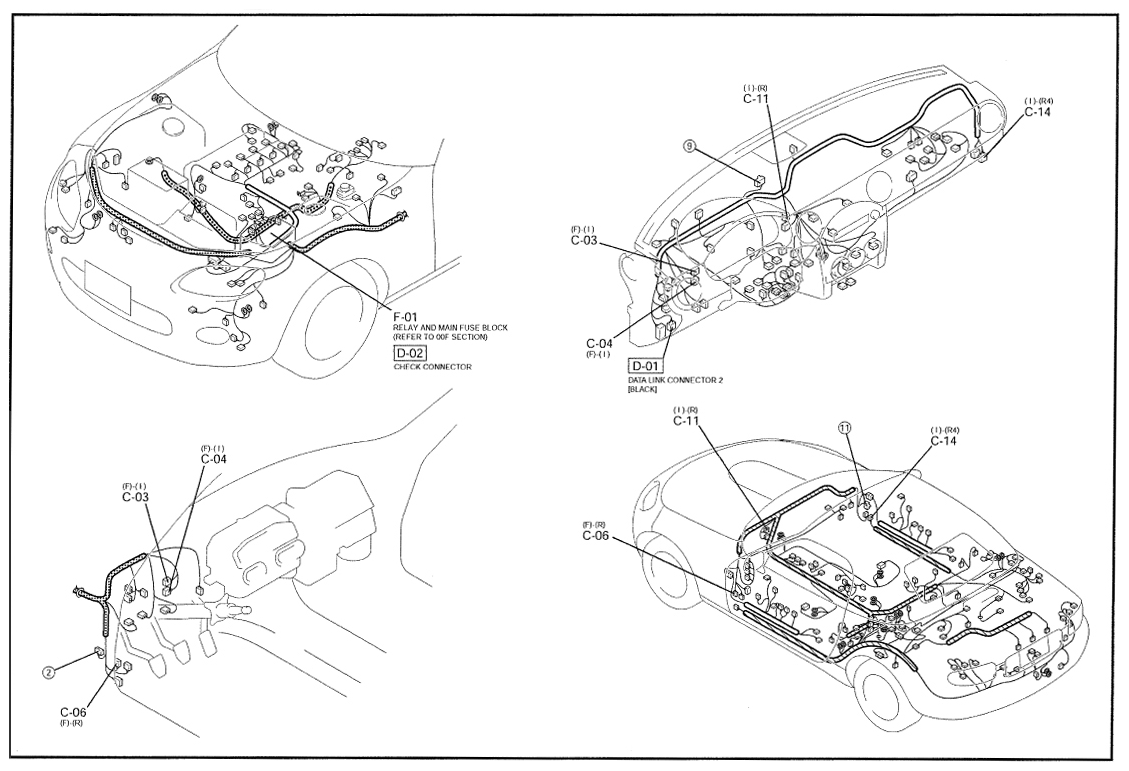

Fig 1: Data Link Connector Wiring Diagram - 00D (1 Of 2)

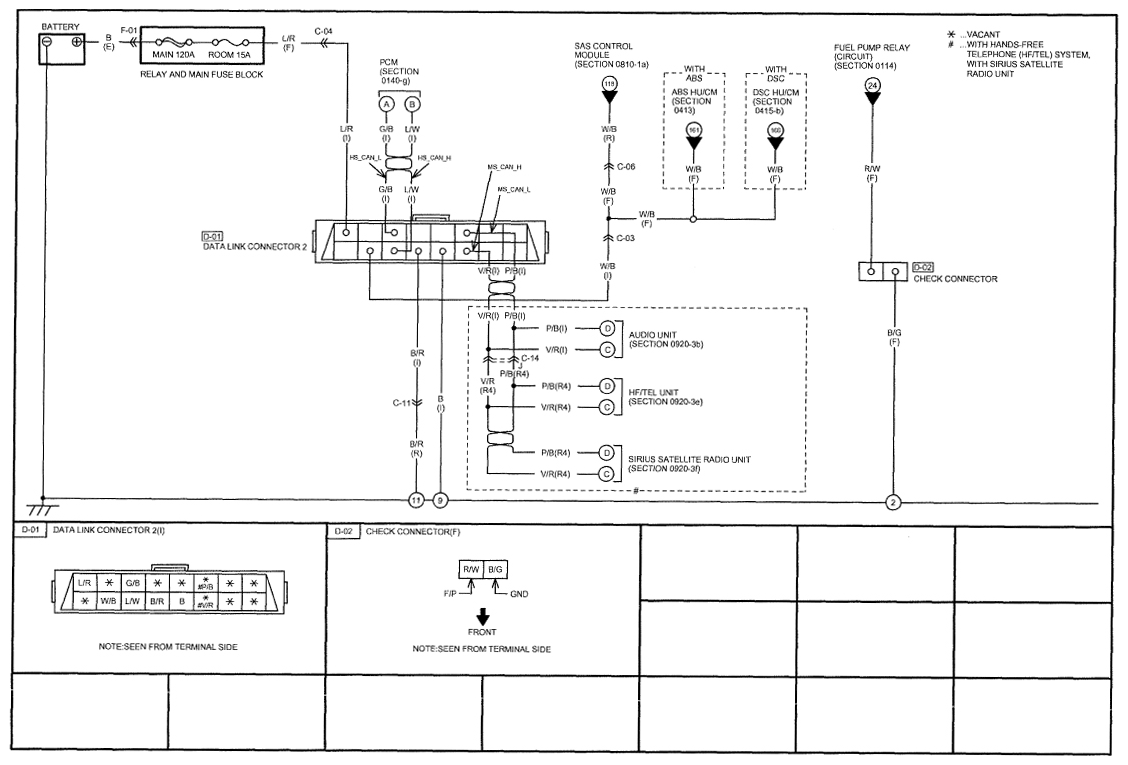

Fig 2: Data Link Connector Wiring Diagram - 00D (2 Of 2)
