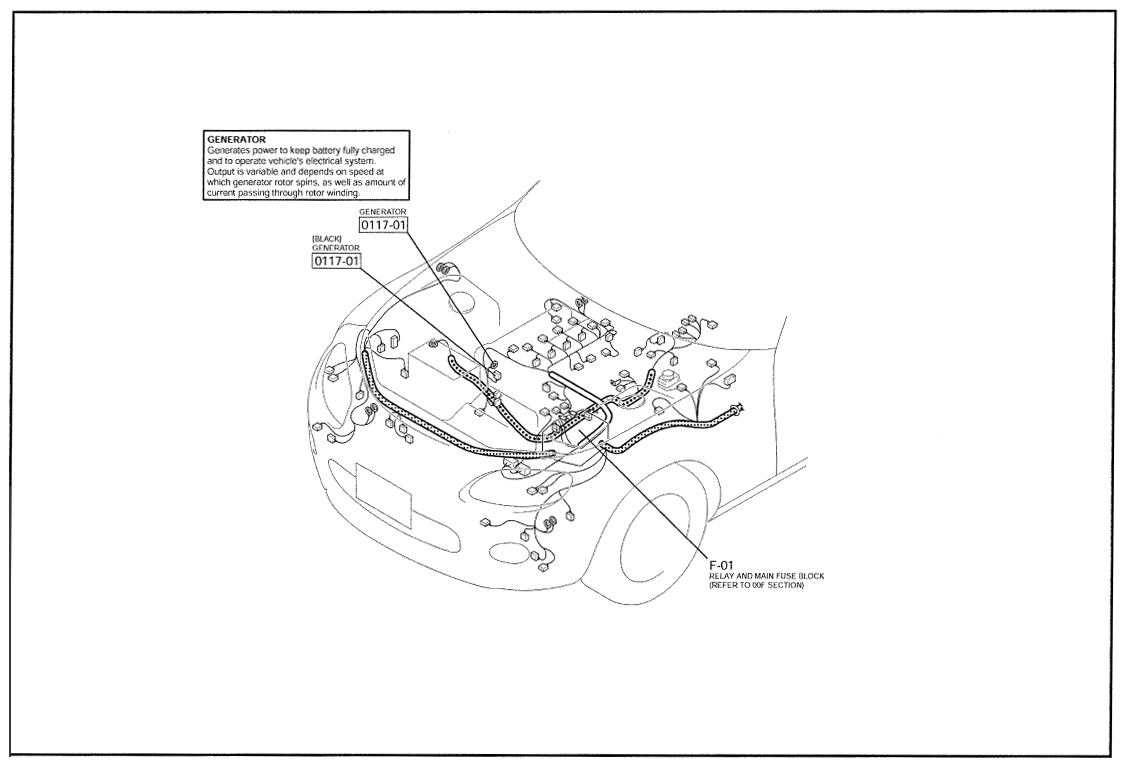

Fig 1: Charging System Wiring Diagram - 0117 (1 Of 2)

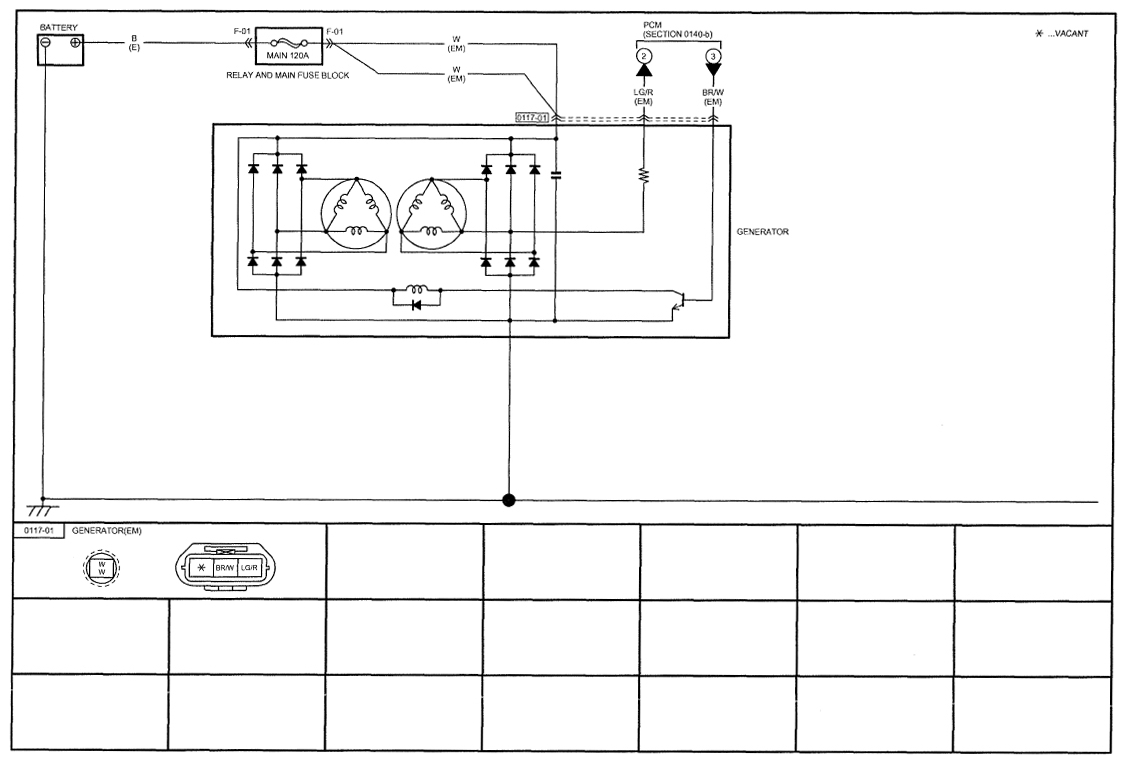

Fig 2: Charging System Wiring Diagram - 0117 (2 Of 2)
