Cooling System

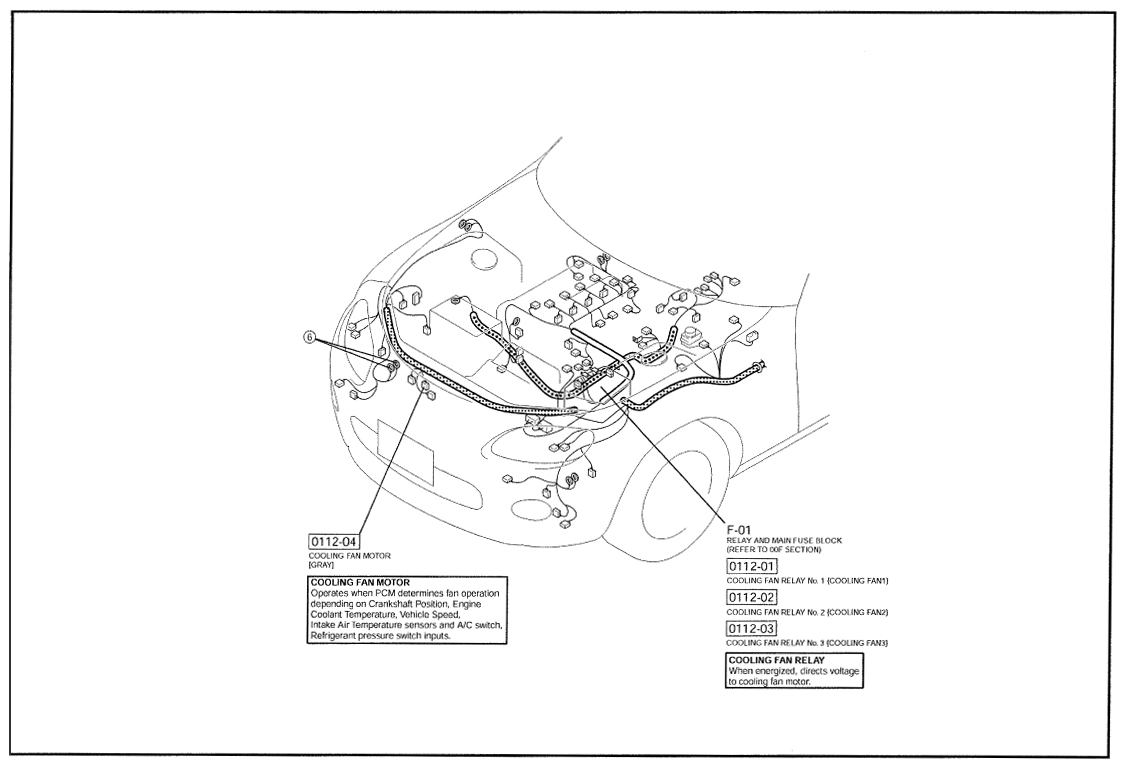

Fig 1: Cooling System Wiring Diagram - 0112 (1 Of 2)

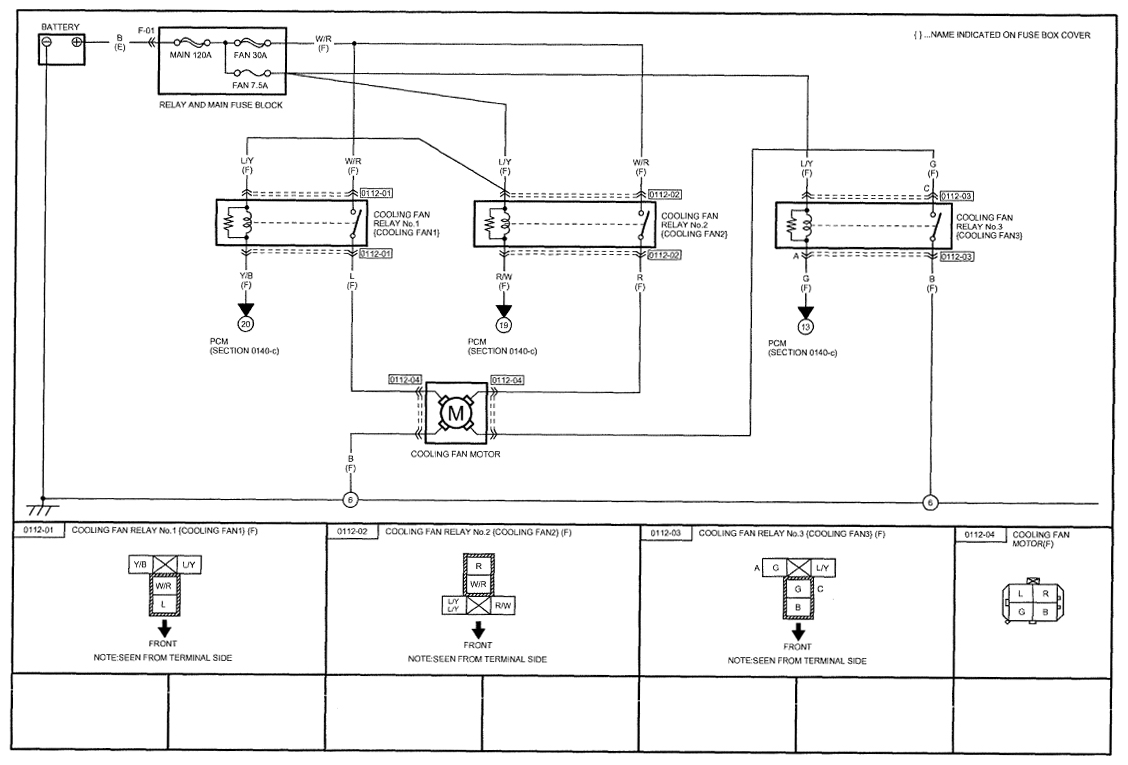

Fig 2: Cooling System Wiring Diagram - 0112 (2 Of 2)
