Fuel System

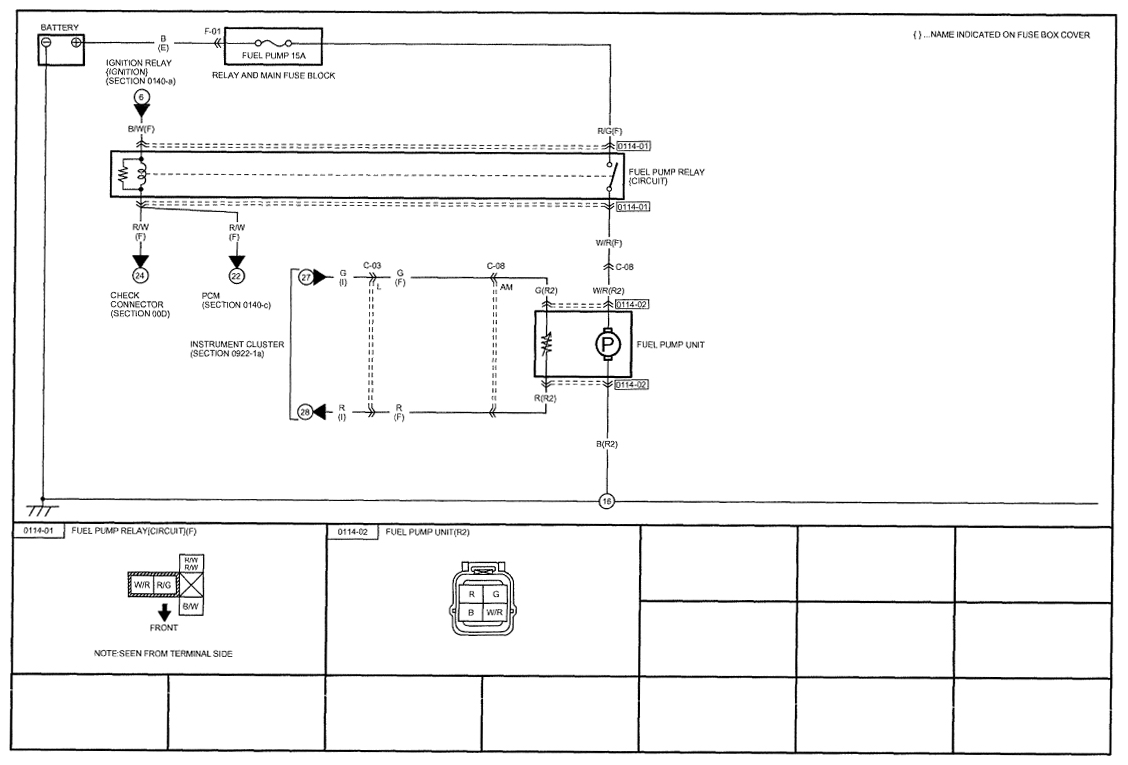

Fig 1: Fuel System Wiring Diagram - 0114 (1 Of 2)

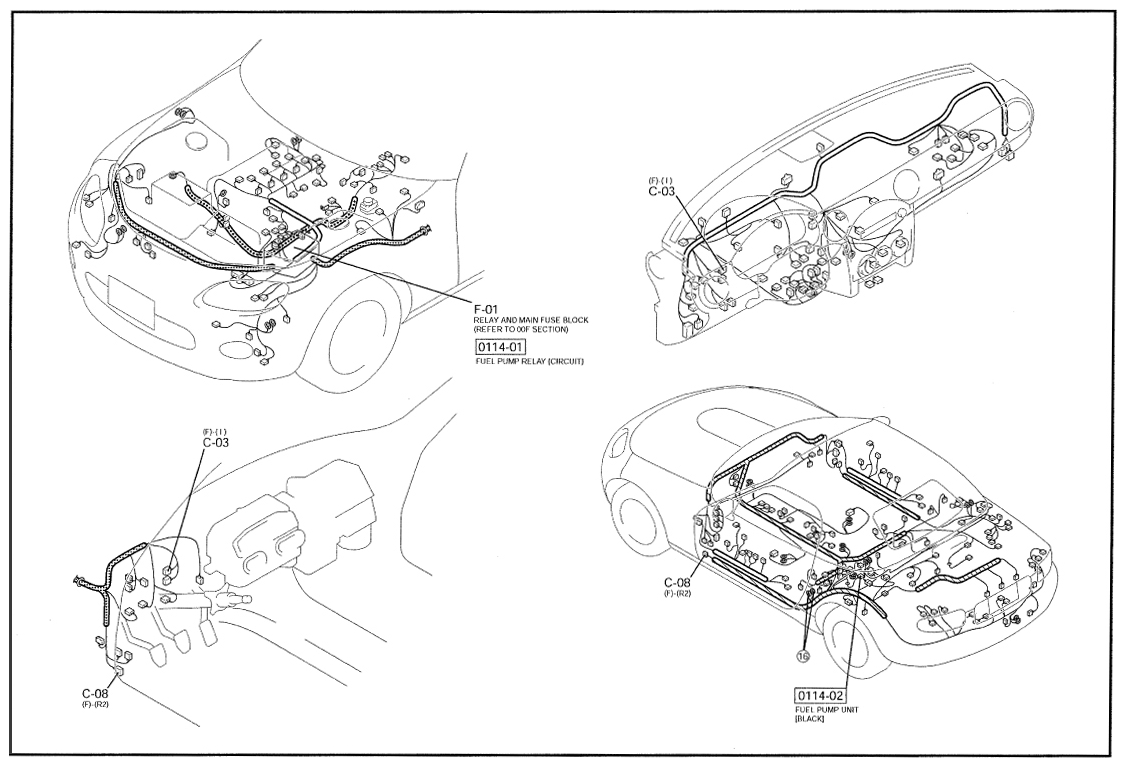

Fig 2: Fuel System Wiring Diagram - 0114 (2 Of 2)
