Starting System

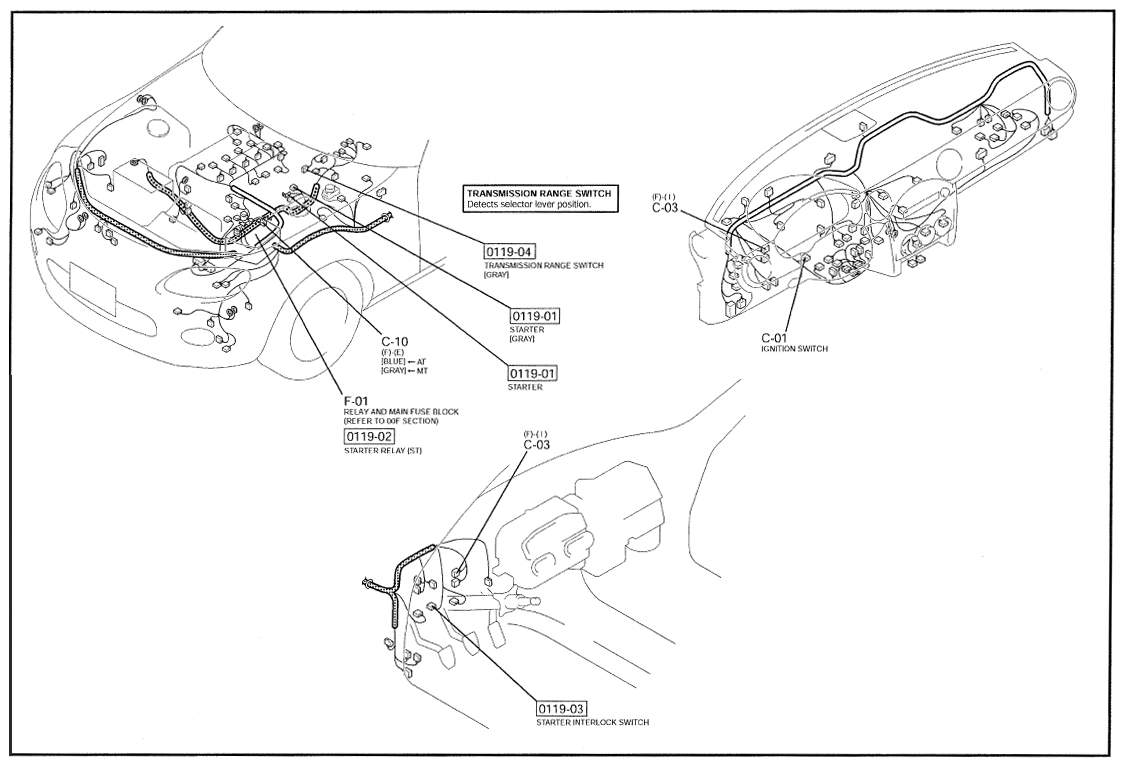

Fig 1: Starting System Wiring Diagram - 0119 (1 Of 2)

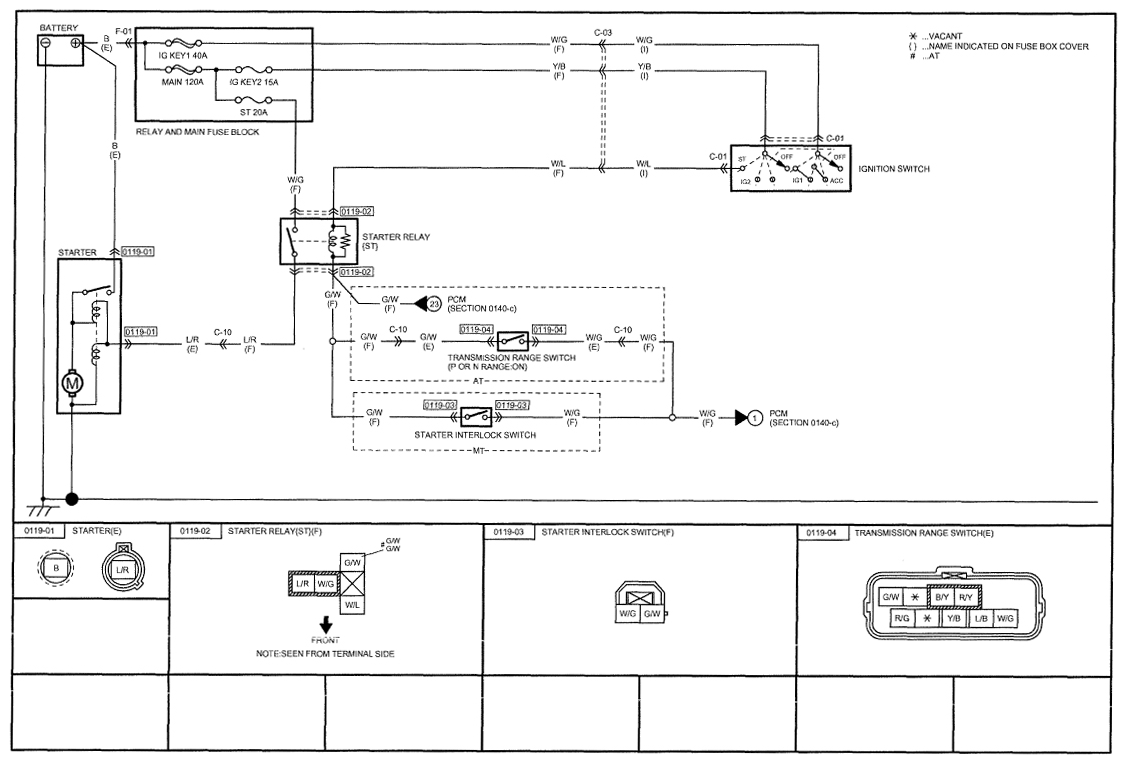

Fig 2: Starting System Wiring Diagram - 0119 (2 Of 2)
