Automatic Transmission Control System

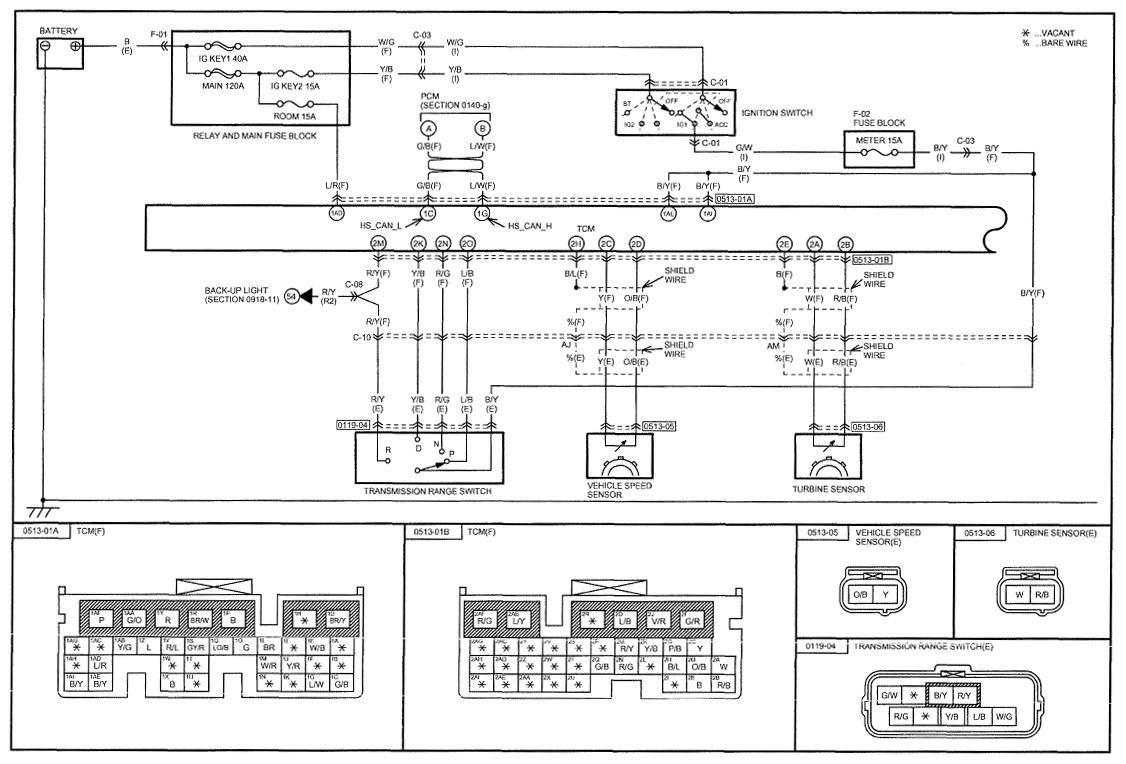

Fig 1: Automatic Transmission Control System Wiring Diagram - 0513-A (1 Of 2)

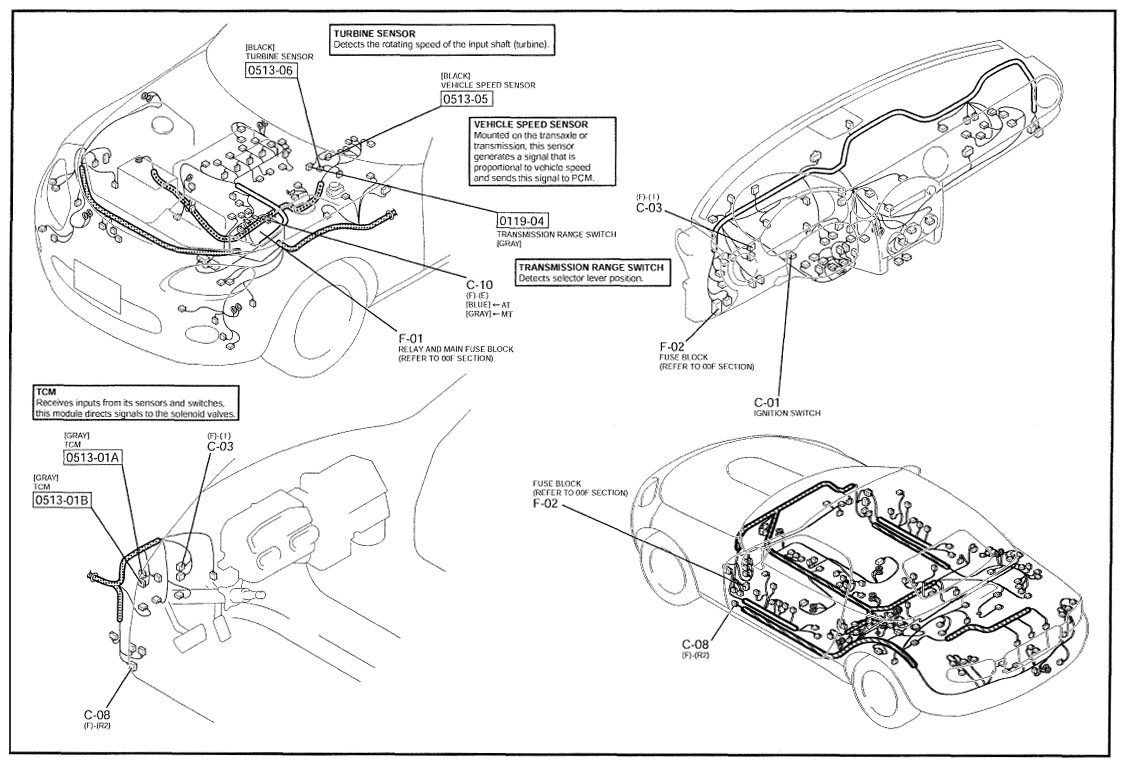

Fig 2: Automatic Transmission Control System Wiring Diagram - 0513-A (2 Of 2)

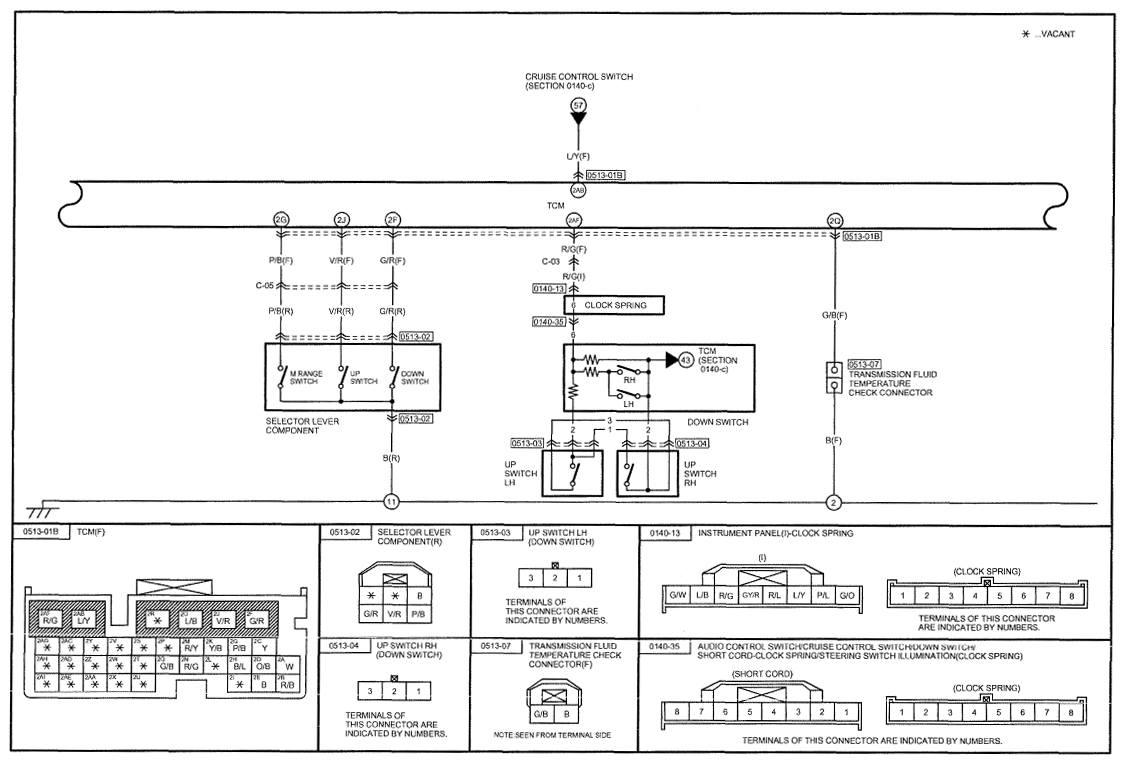

Fig 3: Automatic Transmission Control System Wiring Diagram - 0513-B (1 Of 2)

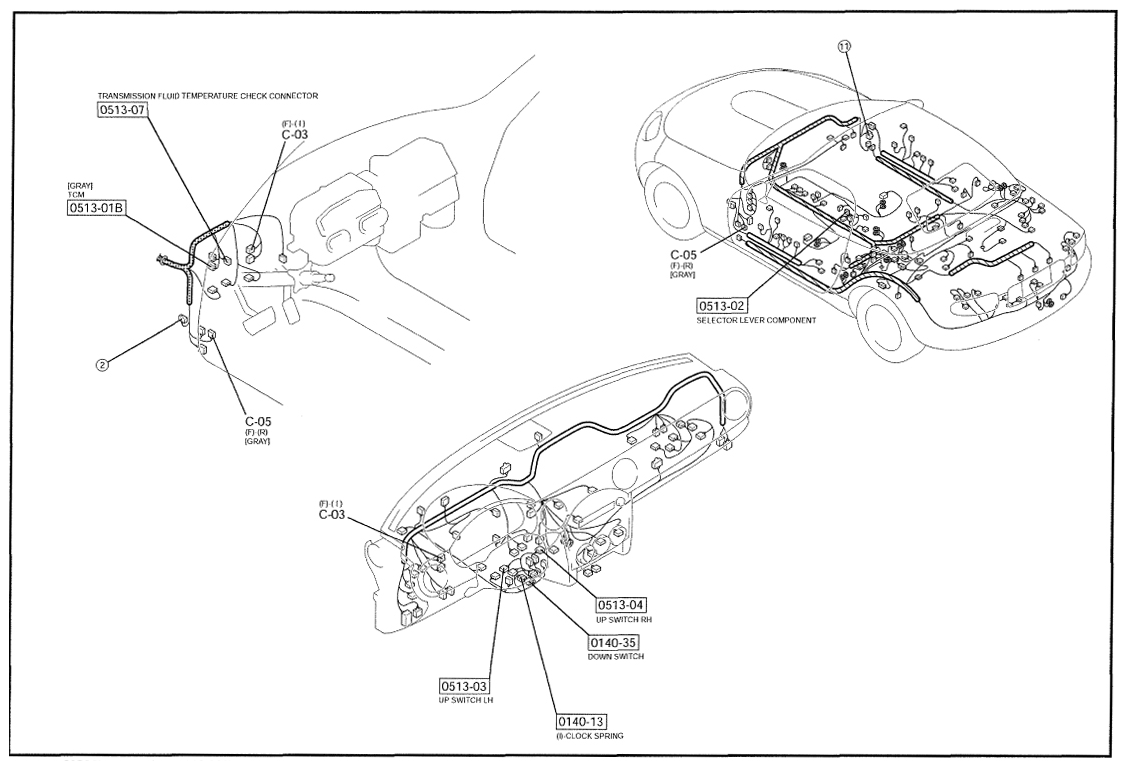

Fig 4: Automatic Transmission Control System Wiring Diagram - 0513-B (2 Of 2)

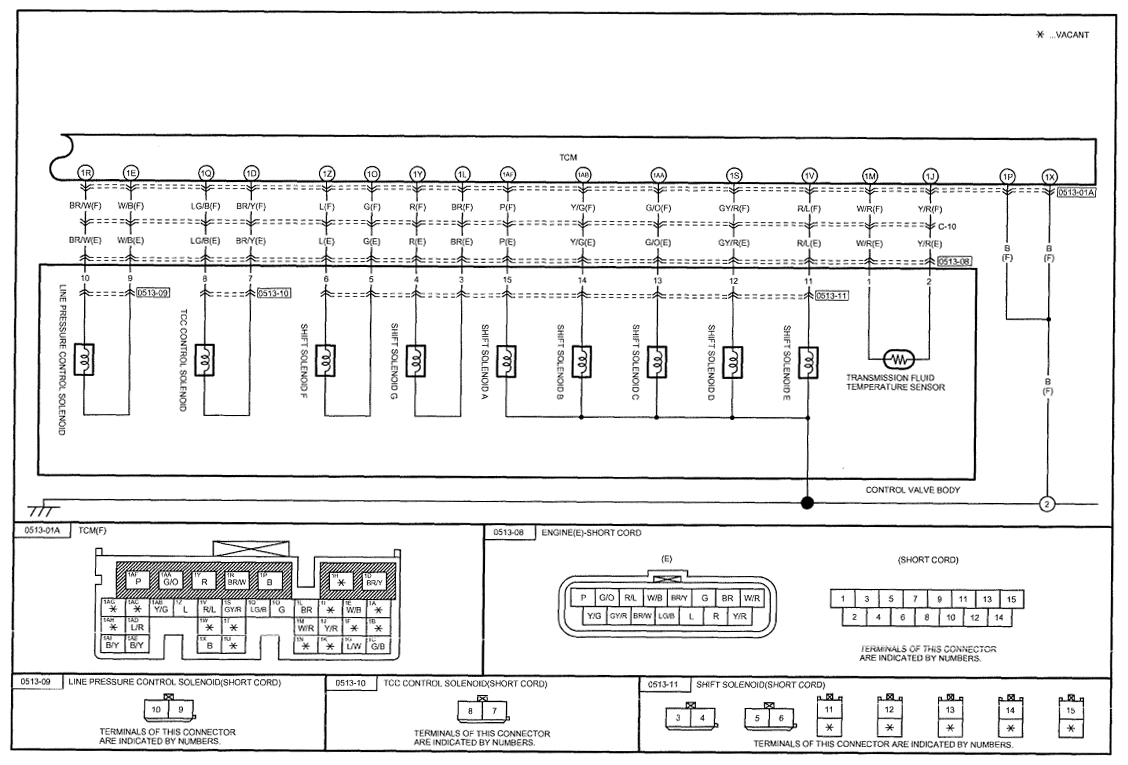

Fig 5: Automatic Transmission Control System Wiring Diagram - 0513-C (1 Of 2)

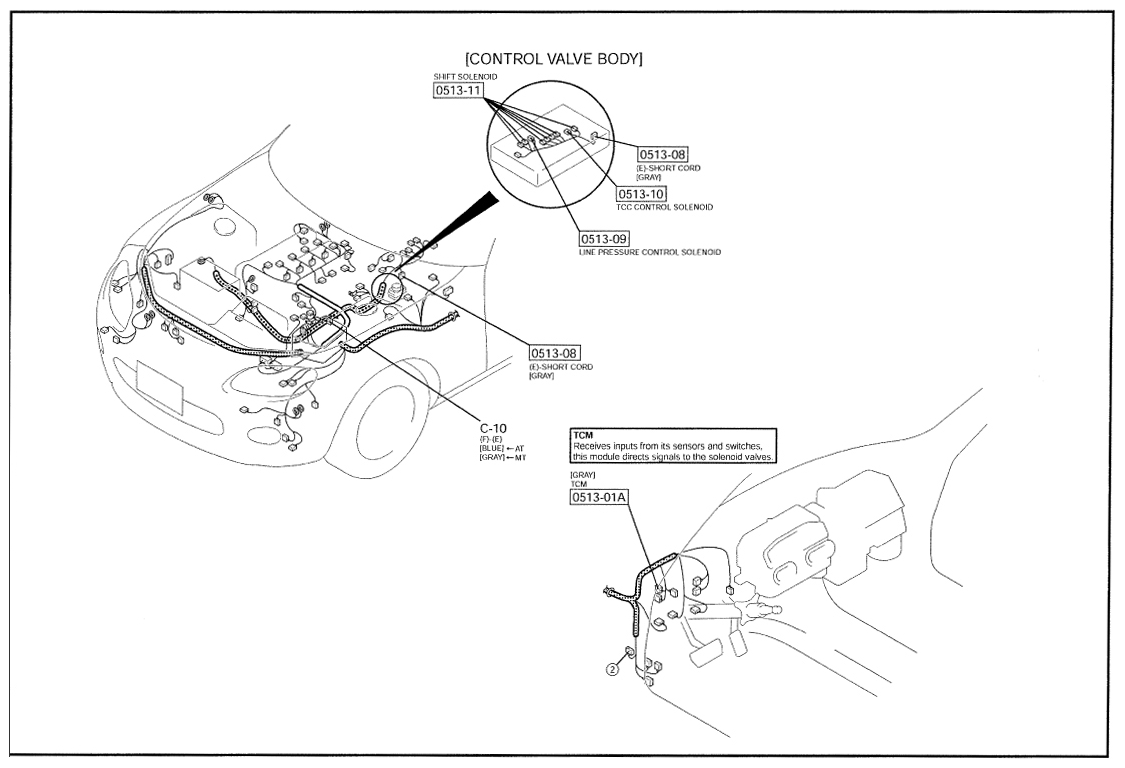

Fig 6: Automatic Transmission Control System Wiring Diagram - 0513-C (2 Of 2)
