Using the DTC troubleshooting flow

DTC troubleshooting flow shows diagnostic procedures, inspection methods, and proper action to take for each DTC.

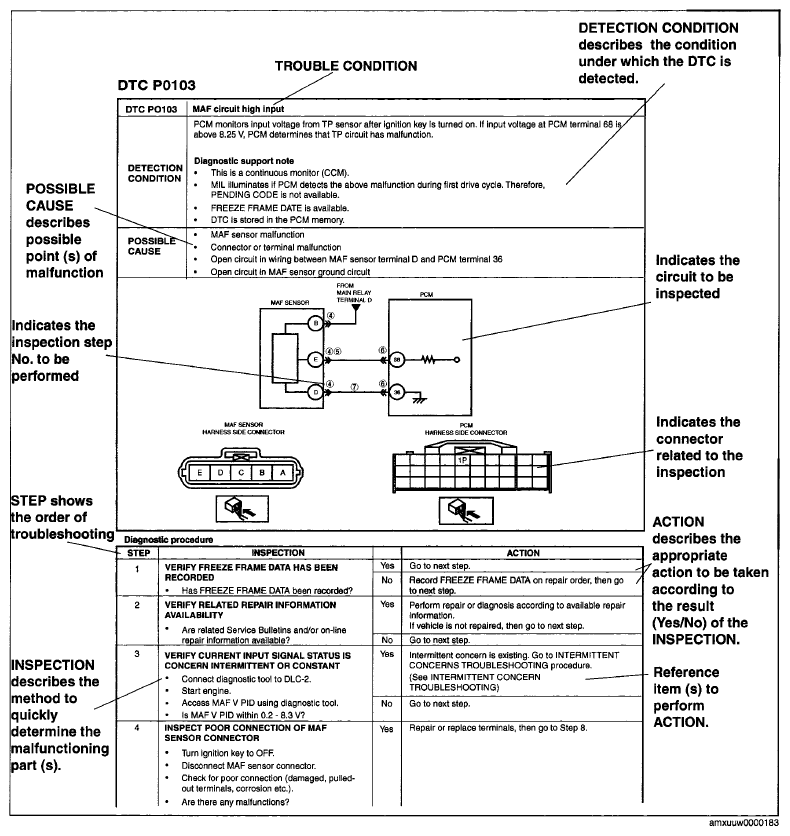

Fig 1: DTC Troubleshooting Flow Chart
Courtesy of MAZDA MOTORS CORP.
