Using the symptom troubleshooting

Symptom troubleshooting shows diagnostic procedures, inspection methods, and proper action to be taken for each trouble symptom.

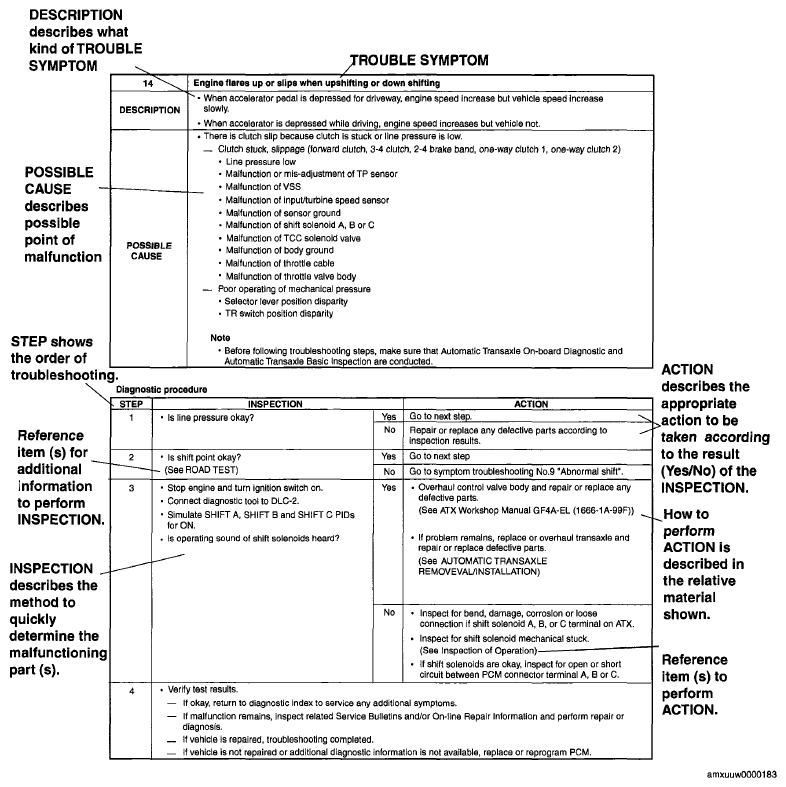

Fig 1: Symptom Troubleshooting Chart
Courtesy of MAZDA MOTORS CORP.
