SAS Control Module Connector End View (Two-Step Deployment Control System)

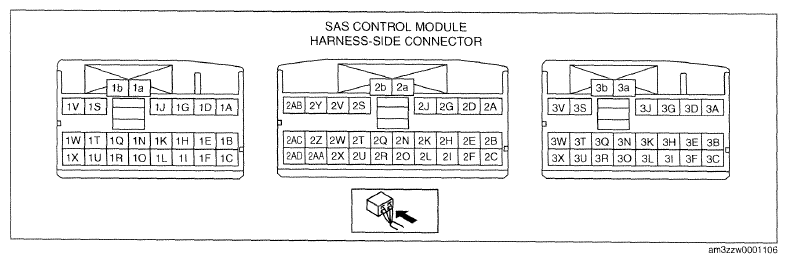

Fig 1: SAS Control Module Connector End View (Two-Step Deployment Control System)
G09760038Courtesy of MAZDA MOTORS CORP.
