Condenser Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Rear seat cushion (LH) (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    4. Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connectors.
  4. Remove the bolts.
  5. Remove the condensers.
  6. Install in the reverse order of removal.

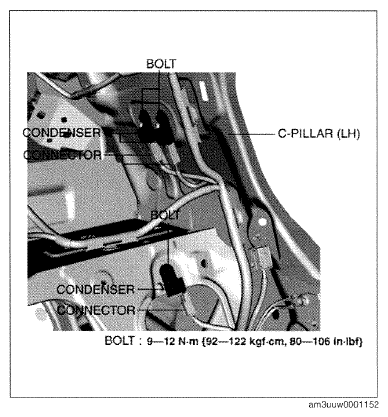

    Fig 1: Condenser, C - Pillar And Bolt And Bolt With Torque Specification
    G09784220Courtesy of MAZDA MOTORS CORP.
