Assist Handle Removal/Installation: Installation

  1. Push the assist handle in the direction of the arrow shown in the figure.
    Fig 1: Pushing Assist Handle
    G09761722Courtesy of MAZDA MOTORS CORP.
  2. Push the assist handle cover assembled to install the assist handle.

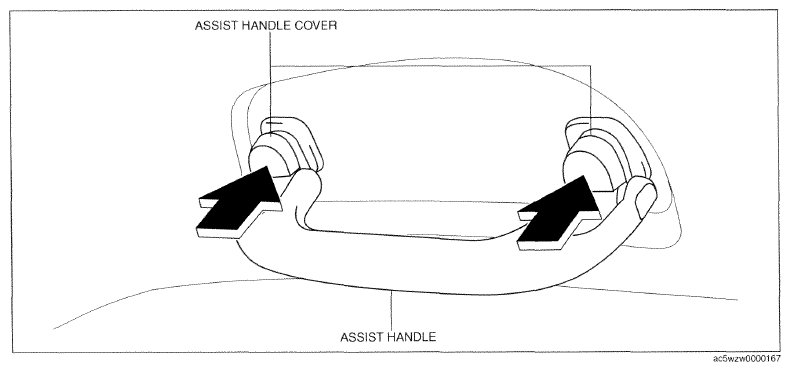

    Fig 2: Installing Assist Handle
    G09761723Courtesy of MAZDA MOTORS CORP.
