Front Console Box Removal/Installation: ATX

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
    2. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
  3. Insert a remover tool in the position indicated by the arrow (1) in the figure and detach clip (1).

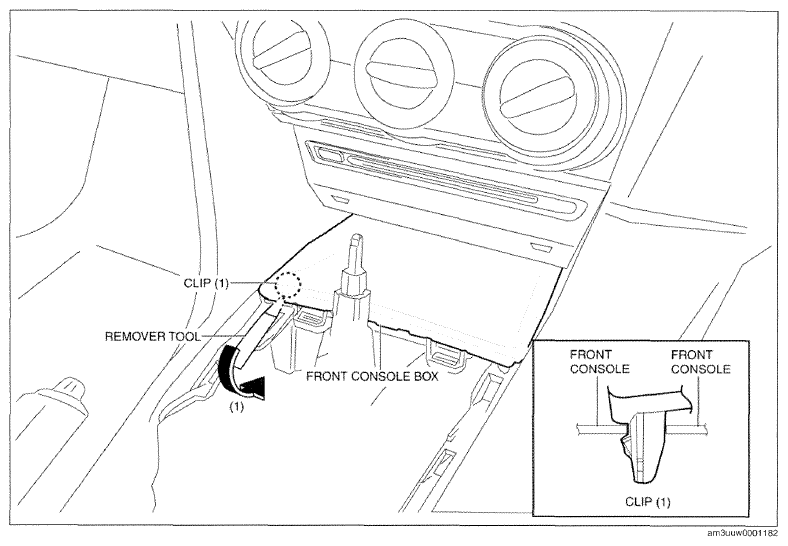

    Fig 1: Inserting Remover Tool Into Position And Detaching Clip
    G09772292Courtesy of MAZDA MOTORS CORP.
  4. Insert a remover tool in the position indicated by the arrow (2) in the figure and detach clip (2).

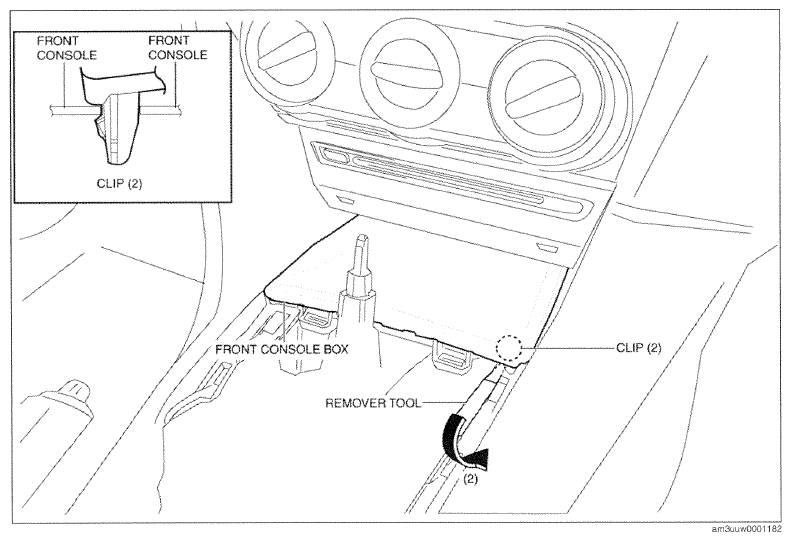

    Fig 2: Inserting Remover Tool Into Position And Detaching Clip
    G09772293Courtesy of MAZDA MOTORS CORP.
  5. Remove the front console box in the direction of the arrow (3) shown in the figure while detaching guide.

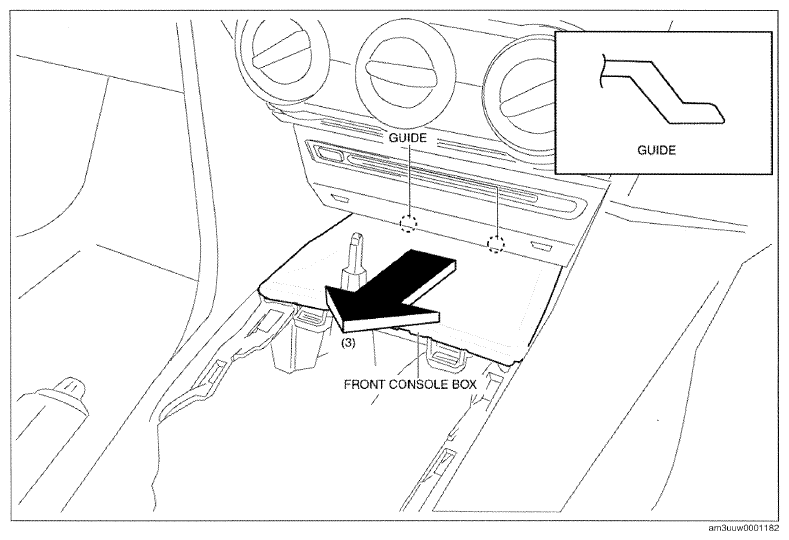

    Fig 3: Removing Front Console Box
    G09772294Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
